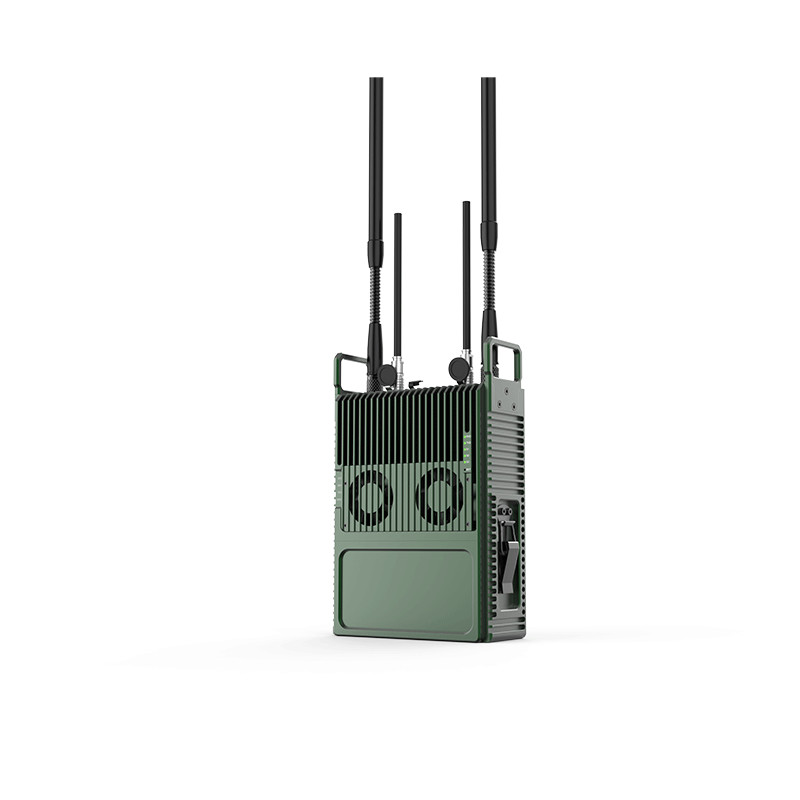

    VB31 Manpack Radio- Stay Connected Anywhere with GCS Ground Control Station and Portable Design

    Ask Lasest Price
    Brand Name : chinowing
    Model Number : VB31
    Payment Terms : T/T
    Supply Ability : 1-10000PCS
    Delivery Time : 2-8 working days
    • Product Details
    • Company Profile

    VB31 Manpack Radio- Stay Connected Anywhere with GCS Ground Control Station and Portable Design

    VB31 Manpack Radio- designed for individual mobility with 8-hour battery endurance,power supply for other devices available.Versatile interfaces (2 SBUS, 1 serial, 1 LAN),and seamless compatibility with our ground control stations and third-party devices. Stay connected on the go!


    Product Features:
    8H endurance,available to power supply other devices (DC12.6V)
    Versatile ports:2 SBUS,1 serial port,1 LAN port
    Portable backpack design for on-the-go operations

    Product Parameters:
    Overall weight:2300g(Exclude antennas)
    Overall dimension:240mm*115mm*63mm
    Working frequency:800MHz(806-826MH2)1.4GHz(1427.9-1487.9MHz)1.4G(standard)
    Power supply voltage:DC12.6V[3-12s battery(output)]
    Battary capacity:10050mAh(8hs@full battery capacity)
    Serial port:TTL RS232(optional)
    Data port:SBUS *2,LAN*1
    RF power:-40~37dBm
    Antenna:2-4dBi Gooseneck Antenna
    Operating temperature -30~+50℃
    video latency:<300ms
    Transmission range:5 km(ground to groumd)
    20km(air to ground) Depend on environment
    30km(air to ground)
    Bandwidth:1.4-20M 1.4M/3M/5M/10M/20M(settable)
    Video input/output:1B10(Connecting lPC device/PC)
    Power supply port:DC25.2V 8A
