    4K video link for High-Speed Data Transmission with MESH Networking with two frequencies optional(600MHz、1.4GHz)

    Ask Lasest Price
    Brand Name : CHINOWING
    Model Number : M1
    Payment Terms : T/T
    Supply Ability : 1-10000PCS
    Delivery Time : 2-8 working days
    • Product Details
    • Company Profile

    4K video link for High-Speed Data Transmission with MESH Networking with two frequencies optional(600MHz、1.4GHz)

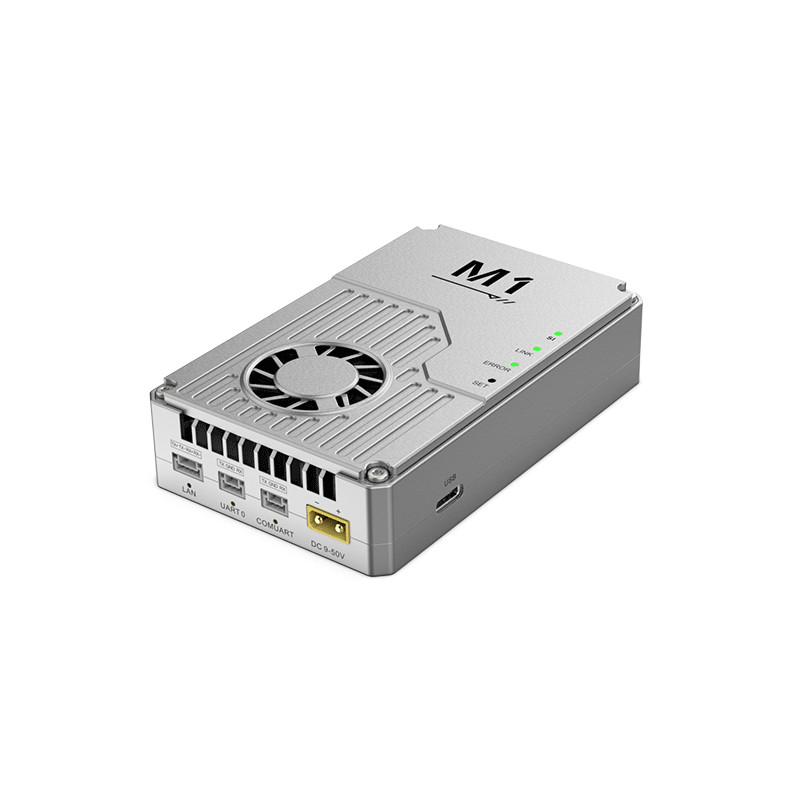

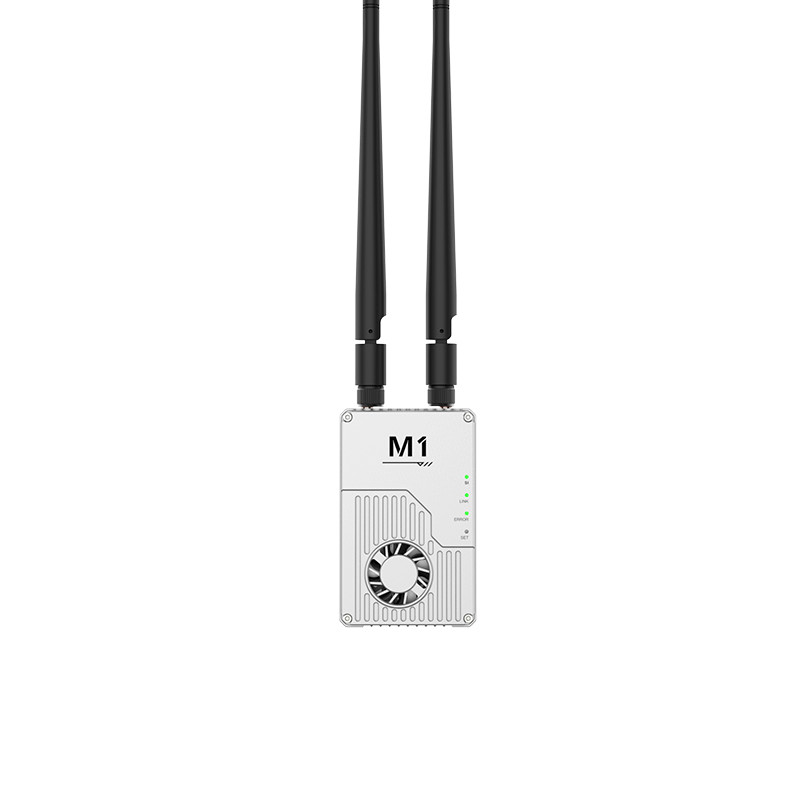

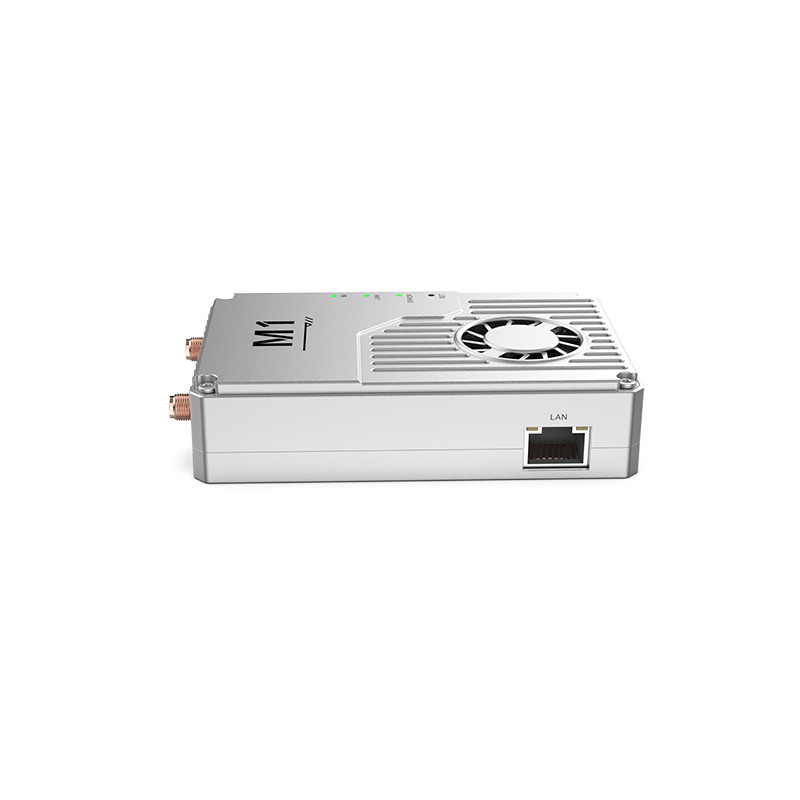

    M1 is a broadband data transmission product supporting MESH networking.Built on the LTE wireless communication standard, it utilizes wireless digital data links with OFDM and MlMO technologies. The device features 10/100 Ethernet ports, serial gateway functionality, and achieves a stream rate of up to 100Mbps when CA mode is enabled. lt provides reliable wireless Ethernet bridging and gateway services for various devices. The M1 can simultaneously transmit telemetry and video, addressing challenges such as limited transmission distance for remote control and telemetry signals,as well as low-quality image transmission.Compact in size,high integration,and good sensitivity, M1 is available with frequency band options at 600MHz and 1.4GHz.

    Product Features

    Two Frequencies optional:600MHz,1.4GHz

    LAN Interface:Compatible with all network protocols

    Distance:Ground-to-Air 20km

    RS232/TTL Optiona:Baud rate adjustable

    Mesh Network:32 devices connections maximum



    Product Parameters

    Overall weight:155g Exclude antennas
    Overall dimension:80mm*56mm*20mm
    Working frequency:600MHz(566-678MHz)1.4GHz(1420-1530MMHz) 1.4G(standard)
    Power supply voltage:DC9-50V 3-12S battery
    Power supply current:300mA 12V power supply
    Serial port:TTL/RS232(optional)
    Data port:RJ45*1,LAN*1
    RF power:-40~ 27dBM
    Antenna:2-4dBi rod antenna 8-12dBi fiberglass antenna(optional)
    Operating temperature:-30℃-+65℃
    Video latency:<300ms
    Transmission range:15-20km LOS/point to point
    Bandwidth:1.4-20M
    MIMO mode:2×2MIMO
    Network mode:32 devices maximum
    Power supply port:XT30
