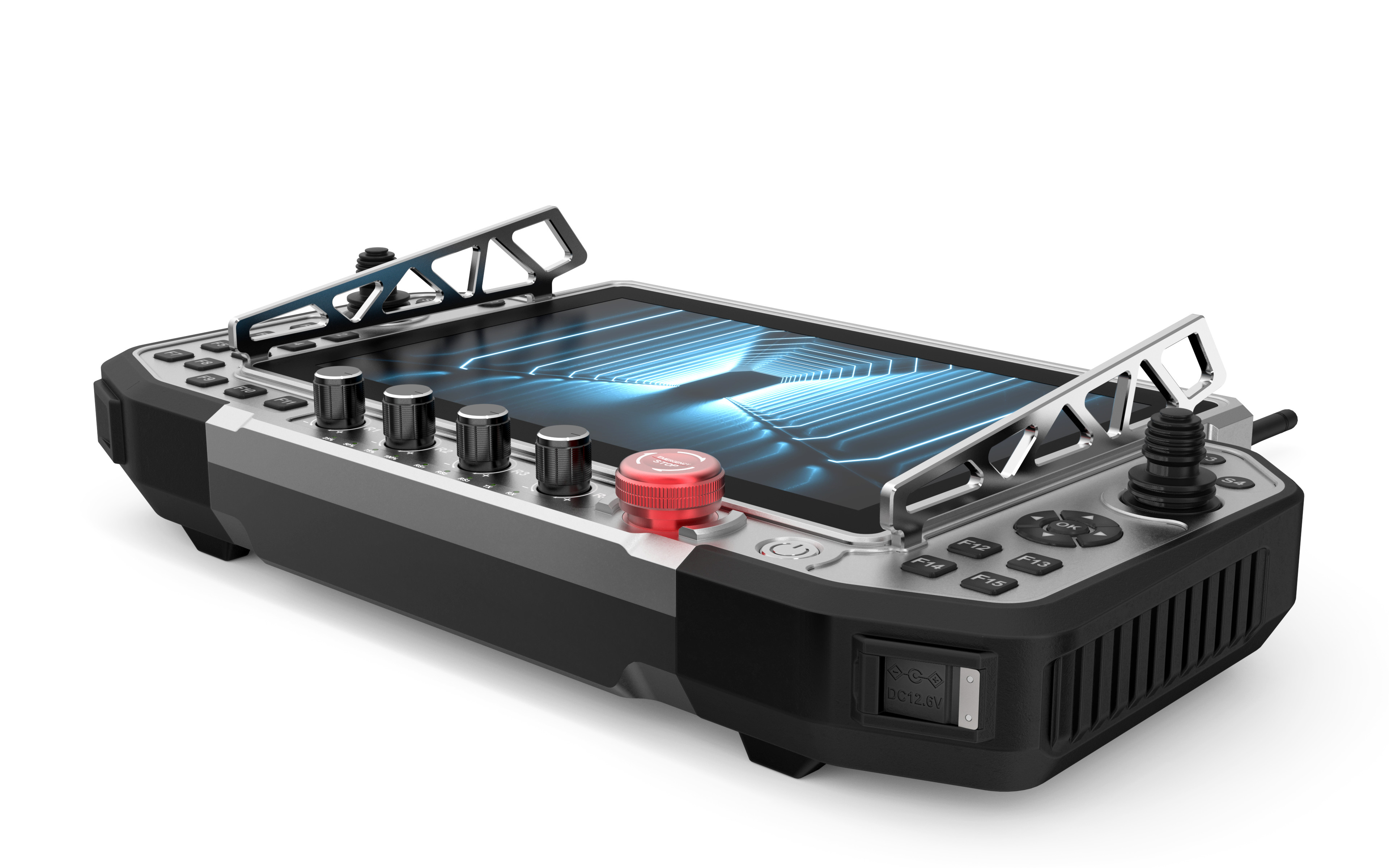

Handheld GCS T31 is a universal solution for controlling the
unmanned vehicle and its payload. lt is especially designed for
unmanned ground vehicle and robot.The system offers functions like
real-time data feedback, remote control status display,route
planning, etc. With Windows and Linux OS for choice, T31 supports
the most GCS software on the market.
The T31 offers two independent S-BUS channels, serial channels,and
other connectors for real-time bidirectional
datatransmission.Equipped with an industrial-grade computer and
military-grade transmission link,the T31 ensures the
safety,stability,and ease of operation for the unmanned vehicle.
We strive to provide a more advanced and user-friendly control
solution with the T31,ensuring the security and stability of
unmanned vehicles while offering ease of use and convenience.
Product Features
Large Electronics Compartment
The large electronics compartment offers a wide range of connection
ports for connecting 3rd party devices.
The T31 supports extended CAN ports and CAN protocol can be
self-defined by the host computer, It is possible to access
underlying communication protocols via serial port protocols to
facilitate usersecondary development.
Ground-Breaking Buttons Settings in the Software
Each button can be used for single-state, bi-state, or tri-state
control, or combined with another button(buttons) to simulate
linear output functions and multifunction switching.
All the commands from the joysticks, switches, buttons are output
from the airborne end through two independent SBUS signal.
Abundant Physical Channels
25 buttons, 1 stop button, 1 directional key,2 hall-effect
joysticks, 4 knobs, 2 pull wheels
Anti-Knock Design
Fully rubberized handle for better grip and control.Strap position
adjustable; anti-knock
Product Parameters
Dimension
Overall weight:2800g
Overall dimension:378mm(L)*221mm(W)*54mm(H)
Display screen:10.1inch 1280*800 1000nit
Computer
CPU:Inteli5 6200U
Touch pad:10-finger capacitive touch screen
Operating system:Windows10/ Linux
RAM:16G DDR4L(standard )32G max
SSD storage:512GB(standard )2T max
Network:WlFl/Bluetooth(standard) 4G(optional)
Interface:HDMI*1,USB3.0*1,4G SIM*1,LAN*1
Remote Control
Physical channel:Main joysticks*2(industrial joysticks with
halsensors),Knob*4,Key button*25,Pulwheel*2,stop
button*1.directional button*1,simulate keystrokes*7
Human interface:USB HID
Remote control function:Dual SBUS independent output, able
tocontrol the vehicle and the payloadsimultaneously
Remote control latency:40ms
SBUS port:SBUS OUT
Battery
Battery capacity:12.6W/10500mAh, external battery alsosupported
Endurance:3.5hs@full battery capacity
Charging port:Type-c 100Wthe vehicle and the payload simultaneously
Communication link
V21:15km grade video&telemetry&RC link
The 3rd party communicationlink:Supportive
