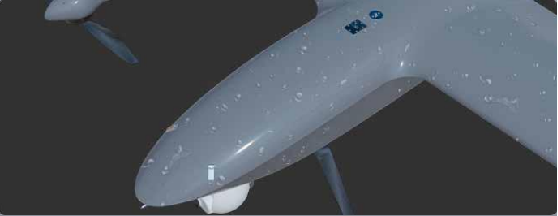

The CP50H is the first gasoline-electric hybrid vertical takeoff and landing drone we launched.

It adopts a composite aerodynamic layout of four rotors and fixed wings, which combines the advantages of vertical take-off and landing of rotors and long range of fixed wings. It is maneuverable and flexible and can adapt to various complex take-off and landing conditions. It adopts hybrid power mode and can achieve 10 hours The above battery life is widely used in defense reconnaissance, emergency communications and other fields.

Main feature:
1. Good waterproof performance


2. Gas-electric hybrid

3. Modular design

Technical Parameters:

Standard takeoff weight: 60kg
Maximum load weight: 15kg
Cruising speed:85km/h
Maximum flight speed:130km/h
Control radius: 50-100km (can be customized)
Maximum climbing speed: 4m/s
Maximum descending speed: 5m/s
Maximum takeoff altitude: 4000m
Maximum wind resistance: Level 7

Working environment temperature: -10~60℃
Fuel tank capacity: 18L
Flight time: 600min
Range: 850km
Aircraft size: 4800*2580*850MM
