    40g D02 data link

    Ask Lasest Price
    Brand Name : CHINOWING
    Model Number : D02
    Certification : FCC CE KC
    Price : USD$407.94~USD$470.70
    Payment Terms : T/T
    Supply Ability : 1-10000PCS
    Delivery Time : 2-8 working days
    • Product Details
    • Company Profile

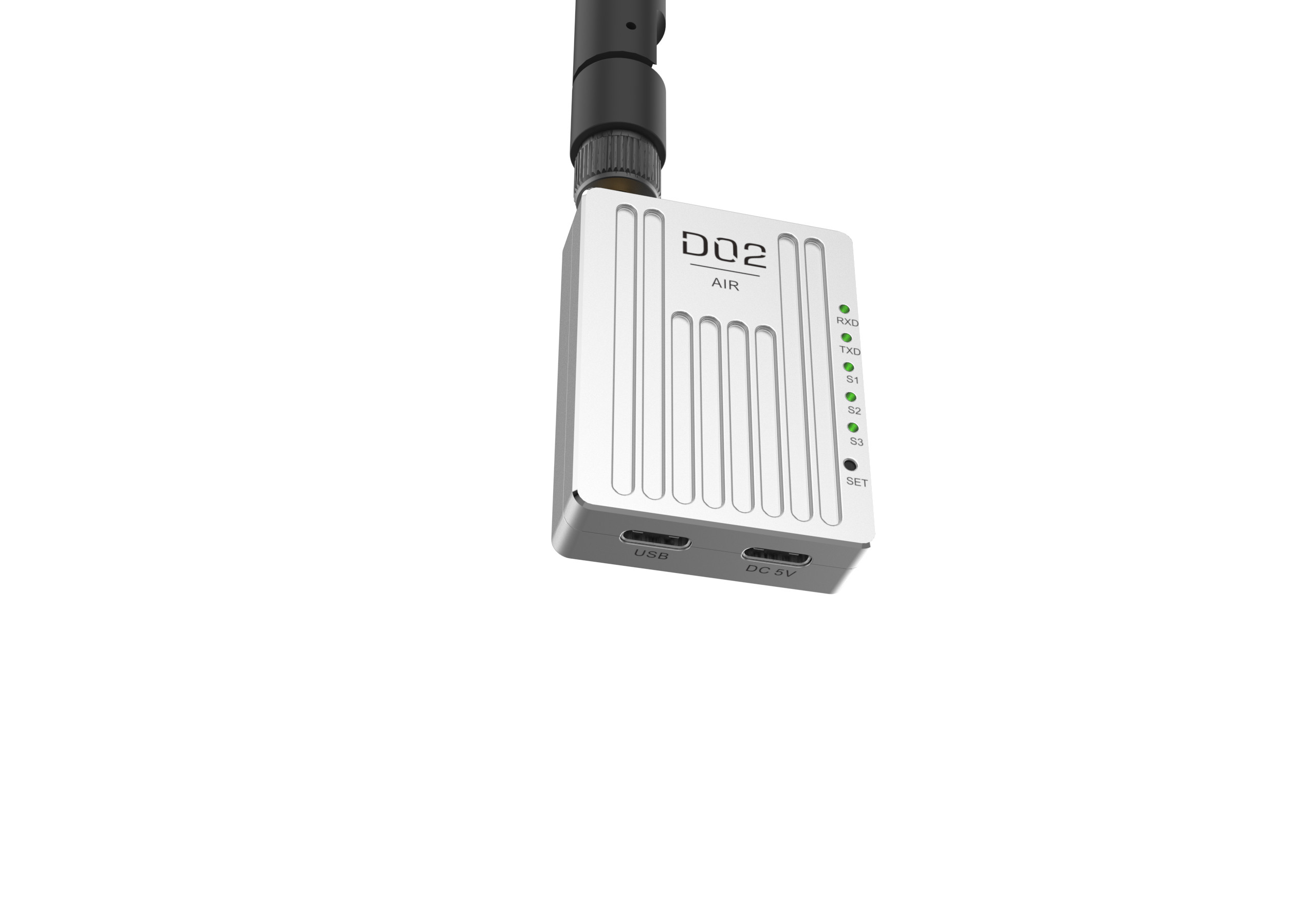

    40g D02 data link

    As an aerial data link, D02 operates in the 900MHz frequency band, and the transmission range can reach 30km. It supports point-to-point, relay, and multipoint communication. With its compact size, high integration, and high sensitivity, D02 is an ideal aerial link.


    Features

    Double USB port,TTL/232

    Parameter setting software

    Developed based on P900/P840/HP840

    30KM transmission range

    Point to point,relay,point to multipoint

    High speed frequency hopping


    40g D02 data link


    Parameters

    D02 Data link
    Modulation hoppingFrequency hoppingBaud rate9600bps-230400bps
    Forwarding errorHamming/BCH/Golay/Reed-solomonWireless Link Rate276kbps max
    Error detection32 bits of CRC ARQpower supply voltageground unit:5.0V airborne unit:7.4v-24v
    EncryptionOptional(See-AES option)Antenna interfaceSMA
    Output power100mW--1w (20-30dBm)Data interfaceGH1.25--4P&USB Type-c
    Transmission range30-60kmDimension62mm*40mm*13mm
    3.3V CMOS TTL(RS232 optional)Weight40g(exclude antennas)

    sensitivity
    -110dBM@115.2kbps -108dBm@172.8kbps -107dBm@230.4kbpsOperating temperature-20-85℃
    transmission protocolTransparent transmission
