    The D03 data&RC link is a military-grade data transmission product suitable for smaller installation spaces.

    Ask Lasest Price
    Brand Name : Chinowing
    Model Number : D03
    Certification :
    Price :
    Payment Terms : T/T
    Supply Ability : 1-10000PCS
    Delivery Time : 2-8 working days
    • Product Details
    • Company Profile

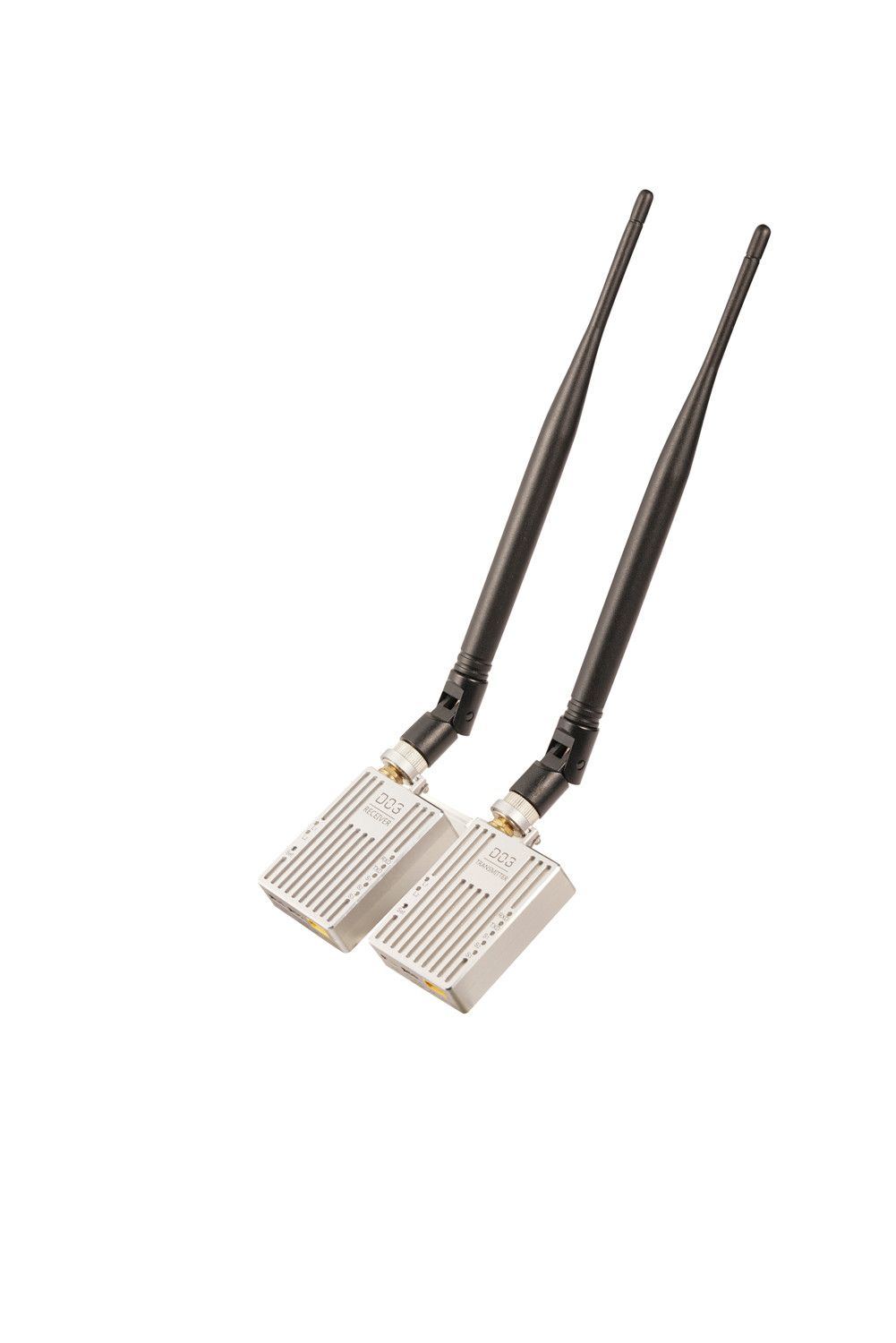

    The D03 data&RC link is a military-grade data transmission product suitable for smaller installation spaces.

    D03 is a data link transmission device that can transmit both remote control signals and data signals simultaneously.The remote control sighal at the ground end can be enhanced and sent to the airborne end together with the data signal.It is mainly used to solve the problem of the short distance and low transmission quality of the remote control signal and the data transmission signal.
    D03 works in the 900MHz frequency band,and the transmission range can reach 30km,max 60km.Compact size,high integration,high sensitivity.

    Product Features

    Telemetry data link and RC link in the one

    Long range control

    50km transmission range with 0 package loss

    Strong diffraction and penetration ability

    TTL or RS232 for choice

    Product Parameters

    ItemParametersDetails
    Overall weight43gExclude antennas
    Overall dimension53mm*40mm*13mmNA
    Working frequency900MHz902-928MHz
    Power supply voltageDC7.4-24V2-6S battery
    Power supply current500mA12V power supply
    Serial portTTLRS232(optional)
    Baud rate9600bps~230400bps
    Data port100k/200k
    RF power20-30dBm
    Antenna2-4dBi rod antenna
    Operating temperature-30℃~+50℃
    Transmission range30-60kmDepend on environment

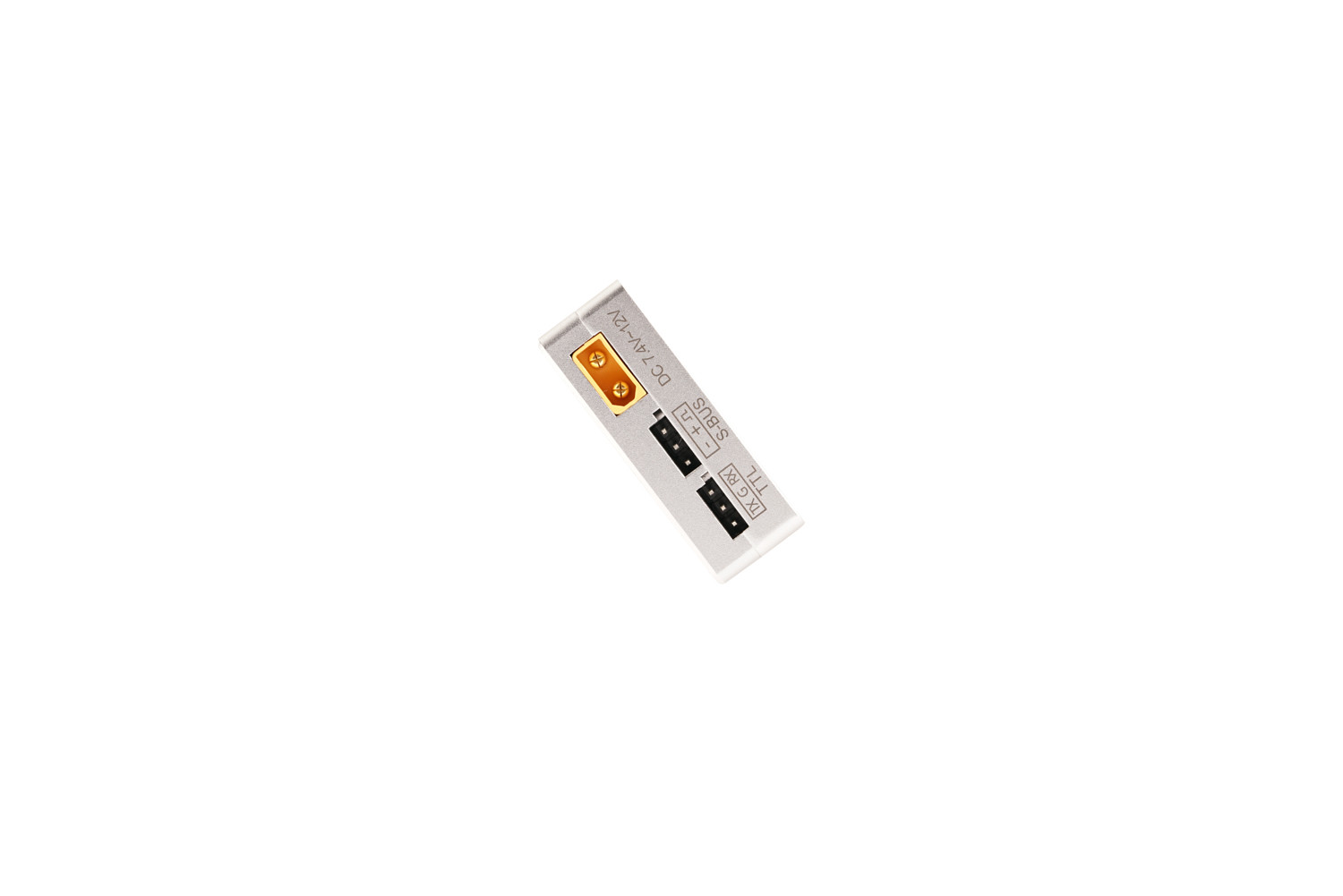

    Power supply portXT30


    The D03 data&RC link is a military-grade data transmission product suitable for smaller installation spaces.The D03 data&RC link is a military-grade data transmission product suitable for smaller installation spaces.The D03 data&RC link is a military-grade data transmission product suitable for smaller installation spaces.The D03 data&RC link is a military-grade data transmission product suitable for smaller installation spaces.The D03 data&RC link is a military-grade data transmission product suitable for smaller installation spaces.
    FAQ:
    Q: Who we are?

    A: We are a world-leading high-tech enterprise specializing in the R&D and production of dual-screen ground control stations, portable ground control stations, military ground control stations and data link modules.

    Q: Could you support OEM&ODM ?

    A: We are able to offer you the best solutions on market by providing you OEM/ODM service.

    Q. How long is the delivery time ?.

    A: Normally small quantity orders will be dispatched within 2-5 working days after receiving payment. For bulk order, we will ship out within 10-15 days..

    Q. How do we make a business long term and good relationship with you?

    A. We will protect our partner's profit by providing them with good quality products and competitive prices. We treat every customer as a friend and do business with everyone sincerely. no matter where they come from.

    Q: How can you guarantee quality?

    A: For all systems before shipment, will undergo a series of tests, including vibration testing, test for functional interface&RF indicators&sensitivity&parameter settings, high and low temperature testing, trial aging testing, test the interface and all wiring, field testing outsides etc.
