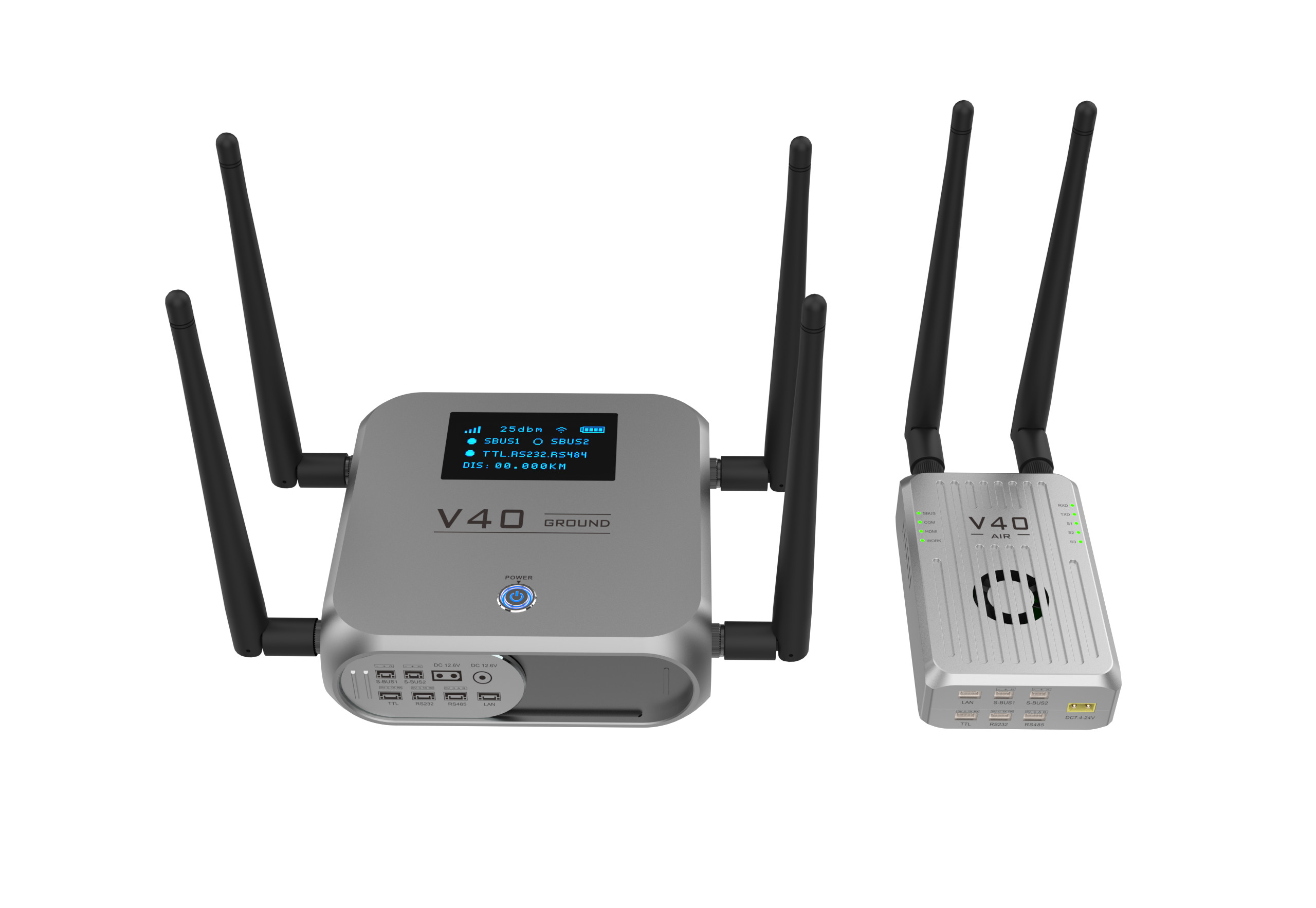

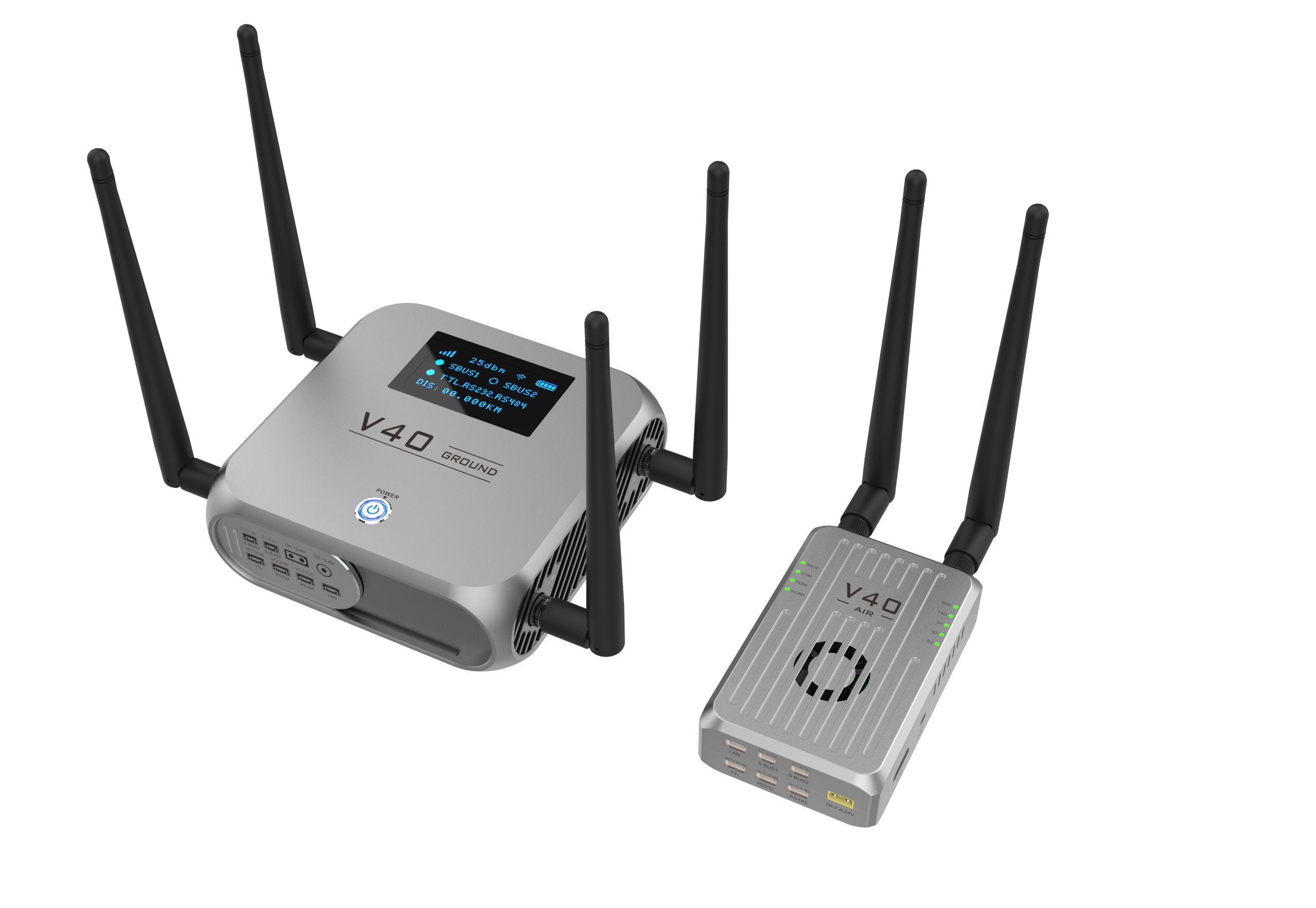

V40 Video And Telemetry And RC Link All in one

V40 is a multi function wireless transmission module. It can transmit telemetry data and real-time video stream, and has 2*SBUS ports, able to provide the control of the vehicle and the payload.

RF modules of 800M, 1.4G, 2.4G frequency bands are integrated into one model, the frequency can be modified in the software. With HDMI and LAN video input interfaces and 3 serial ports(TTL&RS232&RS485), 2 channels of HD video and 3 channels of serial port data can be transmitted simultaneously.

As for the communication mode, V40 supports point to point, point to multi-point communication, the center node can communicate with any node, which greatly expands the application scenarios.

Ground unit has built-in WIFI module, able to connect to the phone, pad or computer wirelessly

High integration greatly reduces the power consumption and the dimension of the product, which is especially suitable for the complicated application.

Features

Multi-function

• Dual SBUS ports
• 3 serial ports ,TTL&RS232&RS485
• Multiple HD video,HDMI/AV/SDI
• WIFI wireless transmission
• Multi-functions in one device, video&telemetry&R link in one
• Various interfaces: HDMI&LAN ports, 2*SBUS ports, 3*serial ports; all can be working simultaneously
• 3 frequency modules in one

3 serial ports

• 3 independent serial ports,support working simultaneously
• Level signal interfaces are TTL,RS232and RS485

(support for TCP, UDP ,Httpd Client,TCP Auto,Web to serial working mode.etc)

Built-in battery

• Built-in battery capacity of 6800mAh,Endurance:10h

LED display

• Visually read the working state of the device

Built-in WiFi module

• Hundreds of meters transmission range ,the latency of video relay transmission ＜40ms
• Supporting data rate at 300 Mbps Max
• Able to wirelessly connect any interface of the airborne unit.

Support video input by HDMI and LAN at the same time

Support double SBUS

• Able to control drones and payload simultaneously

Support dual LAN port

Support 2 LAN ports can work simultaneously

Parameters
