T40 Professional All-in-One Drone Ground Station Compatible with Any Fixed-Wing or Multirotor UAV

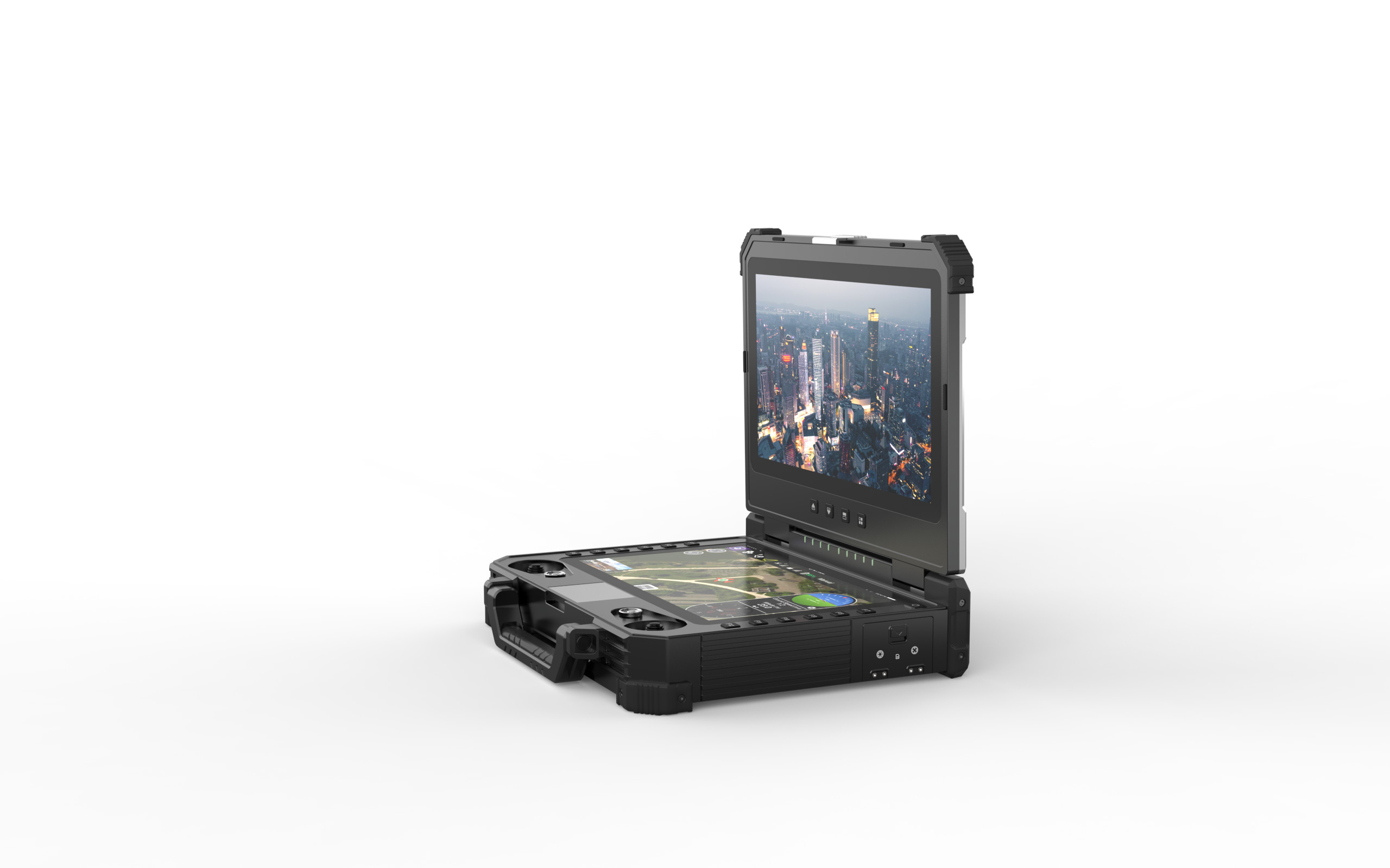

Remote Ground station T40 with dual screens, includes one 13.3inch 1920*1080 1000CCD and one 12.1inch 1280*800 1500CCD. The displays are fully sunlight readable. It is a universal ground control station for all types of UAV, UGV, robots, and other remote-controlled vehicles.

The remote control system has 4 joysticks for use, it also supports traditional RC access. With dual SBUS output and input, the user can assign 27 channels to preferred joysticks, switches, and buttons.

Various input and output ports make it convenient to be integrated with the 3rd party communication device.

All kinds of unmanned aircraft and autopilot systems can be interfaced with this system.

The rugged ground control systems are ideal for the command and control of UAV, UGV, ROVs (remotely operated vehicles), and other robotic vehicles.

Features

Universal off-the-shelf ground control station

Built on Intel-based PC, real industrial-grade GCS

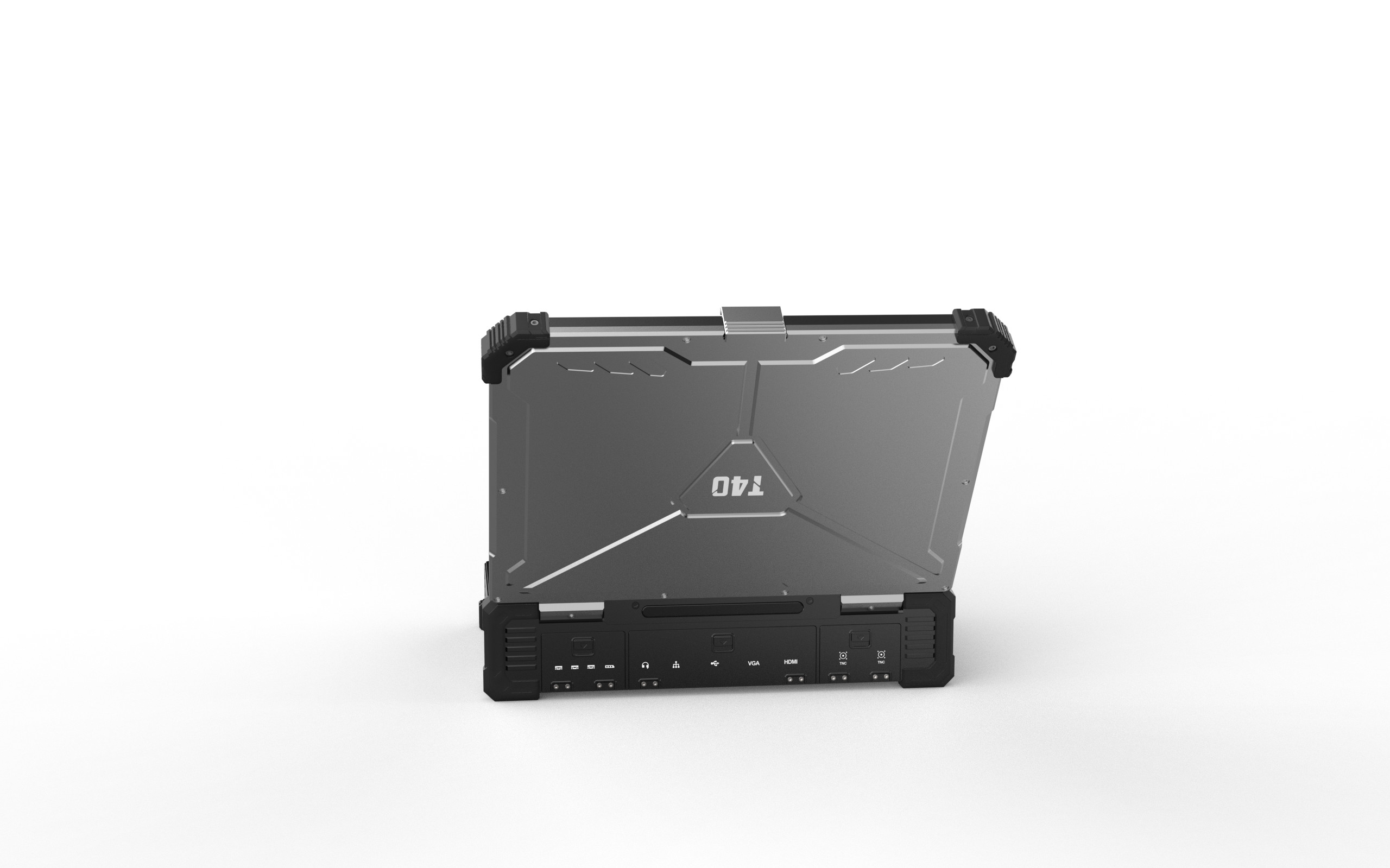

Aviation grade aluminum shell, the overall weight only 5.98kg

Windows and Linux OS for choice

Low latency remote control, 30ms

Built-in 16.8V Li-ion battery, also supporting external battery for power supply

Parameters

Overall

Overall weight: 5.98kg

Dimension: 354mm(L)*280mm(W)*80mm(H)

Operation temperature: -20℃-+60℃

Battery capacity: 16.8V/13600mAh (external battery also supported)

Endurance: 3h@full battery capacity

Communication system:

V30(10km grade)

V21(10km grade)

Supporting the 3^rd party communication

Antennas: 4dBi rod antenna/10dBi fiber-glass epoxy antenna(other antennas also can be connected externally)

Computer

Display screen: 13.3inch 1920*1080 1000CCD(top screen);

12.1inch 1280*800 1500CCD(bottom screen)

Operating system: win10/Linux

CPU: Intel i7 8565U(standard)/Intel 10500U(upgrade for future)

Memory: 8G(standard)

Storage: 256GB SSD(standard)

Network: WIFI, Bluetooth(standard)/4G(optional)

Remote control system

Physical channel: 27

Main joystick: 2(industrial joysticks with hall sensors)

Auxiliary rocker: 4

Key buttons: 12

Simulate keystrokes: 7

Remote control latency: 30ms

Remote control function: Dual SBUS independent output, able to control the vehicle and the payload simultaneously

Human interface: USB HID device

Interfaces

Serial port: RS232*3, SBUS in/out

External interface: USB3.0, LAN, HDMI in, VGA out, Hi-fi

Charging port: DC16.8V

Airborne unit

V30 HDMI(10km grade video&data&RC link)

Frequency: 800MHz/1.4GHz/2.4GHz (3 frequency modules in one, frequency can be changed in the software)

Transmission range: 10km@LOS condition

Bandwidth: 10/20MHz

Data rates: 2-12Mbps

Power voltage: 7.4-12v

RF power: 0.1w-1w(adjustable)

Operation current: 260mA@12v power input

Video definition supported: 1080P60 Max

Weight: 120g(exclude antennas)

Dimension: 91mm*57mm*20mm

Interface

Video input interface: HDMI&CVBS

UART port: 1

SBUS port: 2

Power supply interface: XT30

V21 LAN(10km grade video&data&RC link)

Frequency: 800MHz/1.4GHz/2.4GHz (3 frequency modules in one, frequency can be changed in the software)

Transmission range: 10km@LOS condition

Bandwidth: 1.4M-20MHz(1.4M/3M/5M/10M/20M)

Data rates: 2-12Mbps

Power voltage: 7.4-12v

RF power: 0.1w-1w(adjustable)

Operation current: 260mA@12v power input

Video definition supported: 1080P60 Max

Weight: 120g(exclude antennas)

Dimension: 91mm*57mm*20mm

Interface

Video input interface: HDMI&CVBS

UART port: 1

SBUS port: 2

Power supply interface: XT30

Chinowing has a label as the leading developer of the portable and handheld ground control system in China. Yes, indeed! We love this label.

In an earlier time, the Chinowing team was in the development of UAVs. Each time, the team went out for the flight test and demo, a bulky ground control station was needed to carry, or a 3rd party video&data link with all kinds of wires, remote controller and the computer. Long deployment time, easy failure. If there is a portable all-in-one system that can do command&control, check the real-time video and be free of all kinds of connection wire, that would be too fine.

At that time, there was rarely any handheld GCS used, not any developers in our market. Chinowing CTO, Mr Hu Yanbin, with over 8 years experience in control system development and 5 years experience in the unmanned domain, began the adventure in 2015 to develop handheld GCS, all-in-one video&data&RC link with the brand Chinowing and have realized the high integration. Since the foundation, we have set out to develop high-performance products which are easy to use and integrate, with high criteria to meet the professional standards.

Until now, the Chinowing team has developed eight generations of portable GCS to cater to different application scenarios. The domestic origination dual SBUS output with each channel programmable enables remote control of the drone and the payload together, the user can self-define each channel. With the feature of being user-friendly, our devices have been widely used as remote control devices for UAV, UGV, robots, etc in defence, industrial applications.

Being a customer-obsessed business, we will and continue to invest heavily in R&D and be preoccupied with the wants and needs of customers.
