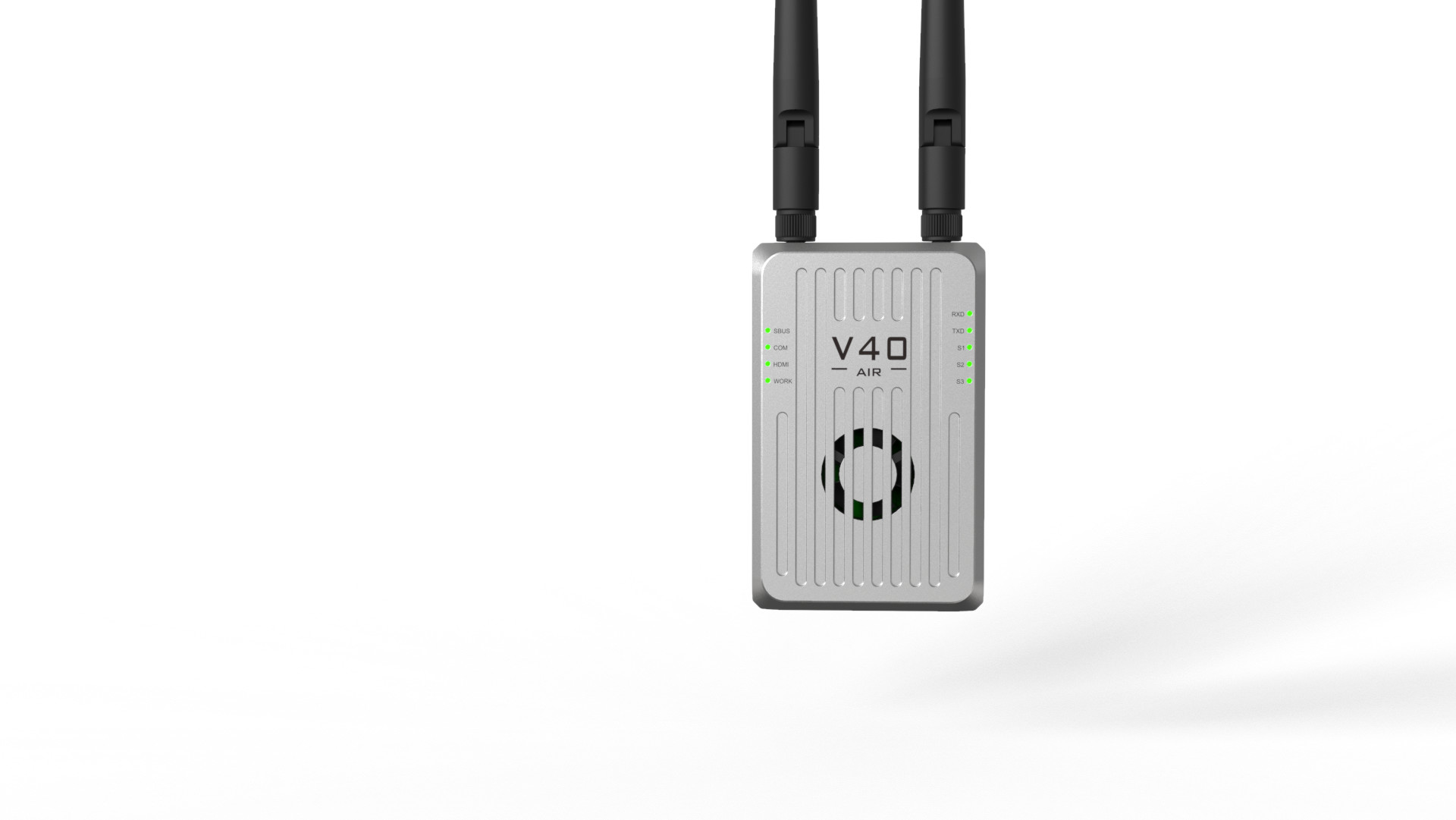

V40 Video And Telemetry And RC transmission device for drone (6800mAh 2-4dB Antenna)

V40 can transmit telemetry data and real-time video stream as a multi function wireless transmission module, it has 2*SBUS ports, able to control the vehicle and the payload.

RF modules of 800M, 1.4G, 2.4G frequency bands are integrated into one model, the frequency can be modified in the software. Apply with HDMI and LAN video input interfaces and 3 serial ports(TTL&RS232&RS485), 2 channels of HD video and 3 channels of serial port data can be transmitted simultaneously.

As for the communication mode, V40 supports point to point, point to multi-point communication, the center node can communicate with any node, which greatly expands the application scenarios.

Ground unit has built-in WIFI module, which can be wirelessly connected the the computer or monitor.

High integration greatly reduces the power consumption and the dimension of the product, which is especially suitable for the complicated application.

Features

• Video&telemetry&RC transmission link all in one device;
• Various interfaces: HDMI&LAN ports, 2*SBUS ports, 3*serial ports; all can be working simultaneously
• 3 frequency modules in one
• Support point to point, point to multipoint communication
• User can view the working status through display screen of the ground unit
• Ground unit with built-in WIFI module, able to connect to the mobile, tablet or computer wirelessly

Parameters

Overall

Frequency:

800MHz: 806-826MHz

1.4GHz: 1427.9-1447.9MHz

2.4GHz: 2401.5-2481.5MHz)

Transmission range: 10km grade

Bandwidth: 3M/5M/10M/20M(adjustable)

Video latency : <=300ms

Airborne unit

RF power: 300mW-2W

Power supply port: XT30

Power supply voltage: 12-24v

Operation current: 470mA@12V power supply

Operation temperature: -35℃~+60℃

Antenna: 2-4dB rod antenna

SBUS port : 2*S-BUS port

Serial port: TTL*1 & RS232*1 & RS485*1

Video input: LAN*1, HDMI*1, CVBS*1

Dimension: 117mm(L)*70mm(W)*30mm(H)

Weight: 236g(exclude antennas)

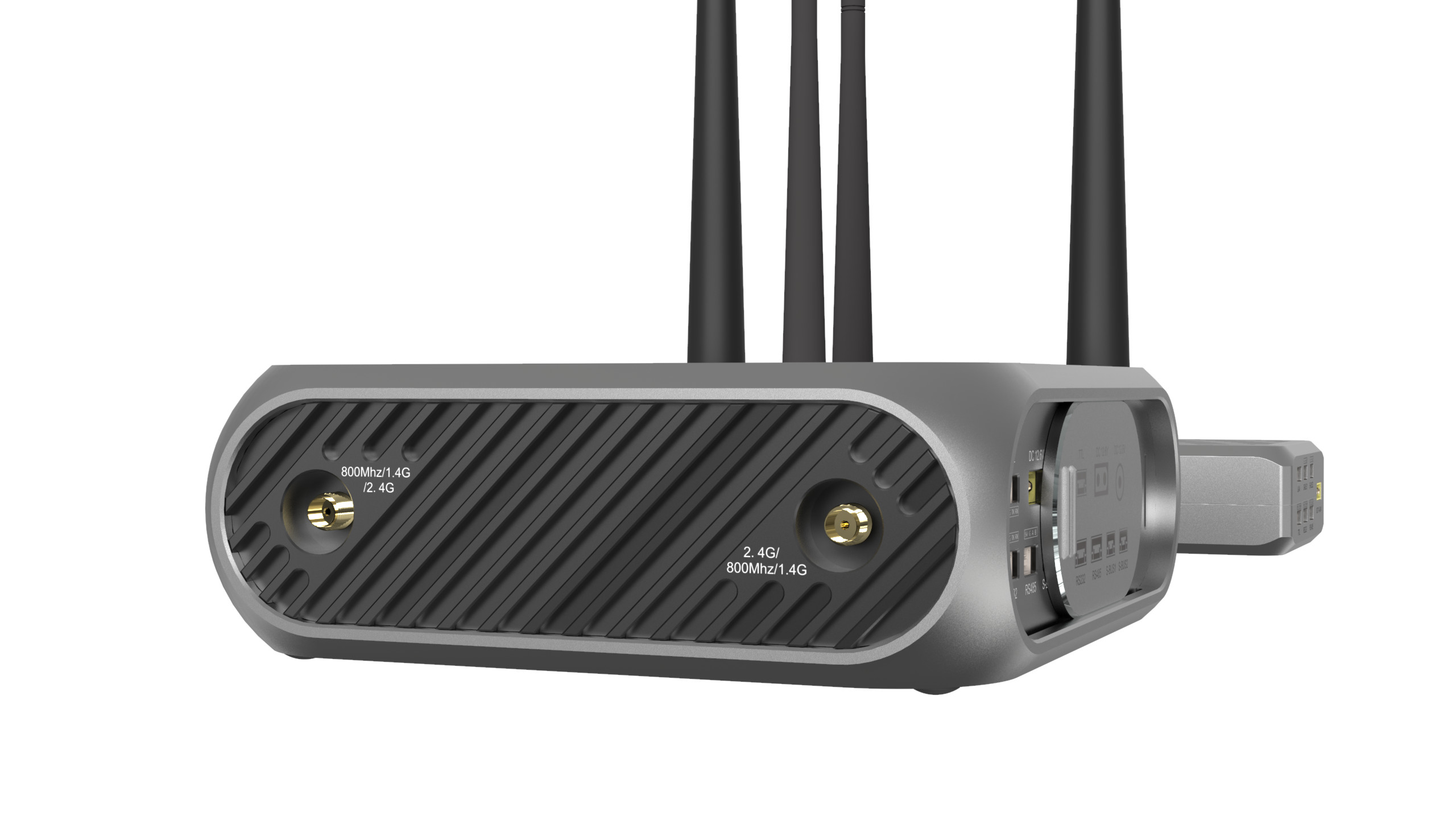

Ground unit

RF power: 300mW-2W(adjustable)

Power supply interface: XT30 12V

Charging port: DC12.6V(Aviation plug/GH1.25)

Built-in battery Capacity: 6800mAh

Endurance: 10h with full capacity

WIFI data rate: 144Mbps-300Mbps

Antenna: 2-4dB rod antenna&8-9dB fiberglass antenna

SBUS port : 2*S-BUS port INTPUT

Serial port: TTL*1 & RS232*1 & RS485*1

Video output: LAN*2

Dimension: 139mm(L)*139mm(W)*48mm(H)

Weight: 1045g(exclude antennas)
