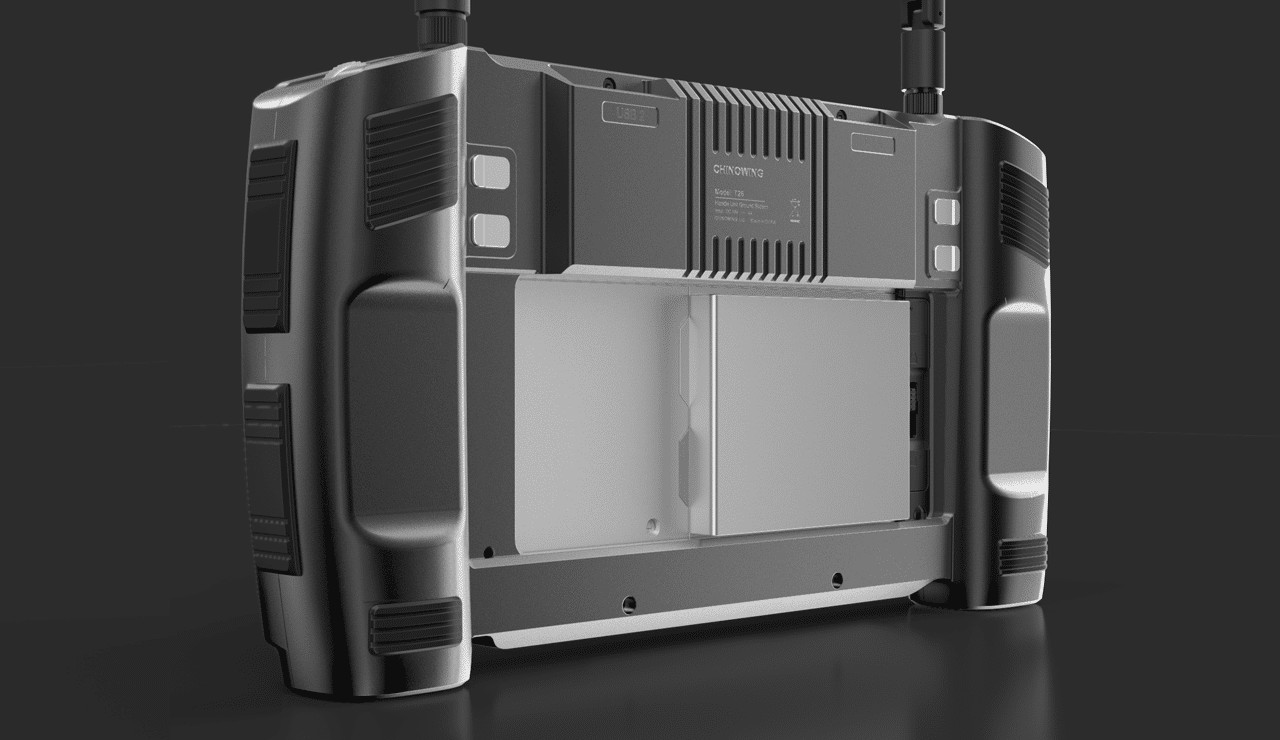

T26 Ground Control Station

T26 is military-grade portable command and control platform in high integration of Panasonic FZ-M1 and video&data&RC link. It provides the function such as mission planning, attitude control, payload control, remote monitoring, real-time video display, etc.

To ensure high-performance and convenient operation, features of T26 includes sunlight-readable, multi-touch display, lightweight, 16 channels, window 10 operating system and strong hardware enabling the scalability.

The rugged, water and dust-proof design, is especially suitable for the operation in the harsh environment.

Performance upgrade

• Integration of panasonic is three computer FZ-M1
• The original 10 Windows system
• Intel core processors
• Sunshine can video, brightness 800nits
• IP65 rating

Perfect remote control experience

• Double hall rocker
• Double round rocker
• Light alloy buttons

Big long battery life

• Battery capacity is 3220 mah+6800 mah
• Remote sensing length test about 9 h
• The web browsing time about 12 h

Modelling design

• Aviation aluminum alloy shell,strong and lightweight
• Product the total weight is only 1.5 kg
• Around with soft rubber,skid resistance to knock against

Parameters

Overall

Overall weight: 1.5kg

Dimension: 30cm*15.8cm*4cm

Operation temperature: -20℃-+60℃

Battery capacity: Built-in 7.4V/3220mAh(RC)& 8.4V/6800mAh (computer)

Endurance: 9hs

IP rating: IP65

Communication system: V21(10km grade)

Antennas: 2-4dB ZYJB antenna

Computer

Computer: Panasonic FZ-M1(Processor: Intel i5 7Y57)

Display screen: 7inch industrial touch screen+800nits sunlight readable+definition 1280*800

Operating system: Win10

CPU: Intel i5 7Y57

Memory: 8G

Storage: 256GB SSD

Network: WIFI/Bluetooth/4G

Remote control system

Physical channel: 16

Joysticks: 2

Pull wheel: 2

buttons: F1-F10

(Each channel programmable, the user can self-define each joystick, switch, button, etc)

Remote control latency: 40ms

Remote control function: Dual SBUS independent output, able to control the vehicle and the payload simultaneously

Human interface: USB HID device

Interfaces

External interface: USB3.0*2

Chinowing has a label as the leading developer of the portable and handheld ground control system in China. Yes, indeed! We love this label.

In an earlier time, the Chinowing team was in the development of UAVs. Each time, the team went out for the flight test and demo, a bulky ground control station was needed to carry, or a 3rd party video&data link with all kinds of wires, remote controller and the computer. Long deployment time, easy failure. If there is a portable all-in-one system that can do command&control, check the real-time video and be free of all kinds of connection wire, that would be too fine.

At that time, there was rarely any handheld GCS used, not any developers in our market. Chinowing CTO, Mr Hu Yanbin, with over 8 years experience in control system development and 5 years experience in the unmanned domain, began the adventure in 2015 to develop handheld GCS, all-in-one video&data&RC link with the brand Chinowing and have realized the high integration. Since the foundation, we have set out to develop high-performance products which are easy to use and integrate, with high criteria to meet the professional standards.

Until now, the Chinowing team has developed eight generations of portable GCS to cater to different application scenarios. The domestic origination dual SBUS output with each channel programmable enables remote control of the drone and the payload together, the user can self-define each channel. With the feature of being user-friendly, our devices have been widely used as remote control devices for UAV, UGV, robots, etc in defence, industrial applications.
