    350CCD Ground Control System

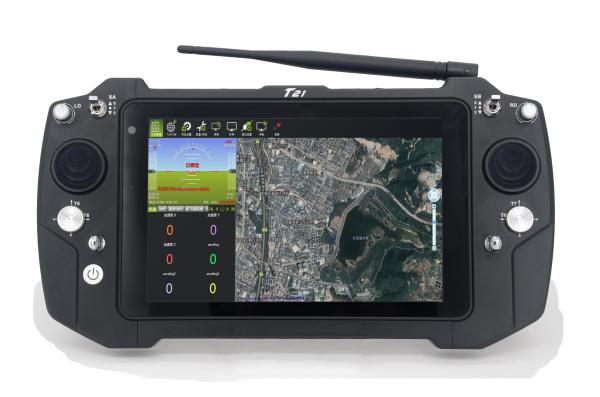

    T21 Ground Control Station


    The T21 hand-held ground control station is a portable industrial grade ground computer station with dual SBUS design.


    T21 provides function such as mission planning, attitude control, payload control, navigation & positioning, remote monitoring, etc.


    Industrial-grade computer and military grade data link ensures the safety and stability of the flight. Easy operation and transportation. It has been widely used in unmanned aerial vehicle, ground robots, bomb disposal robots, remotely operated vehicles (ROV) and other robotic devices.


    Product Features

    • Industrial grade computer with GPS

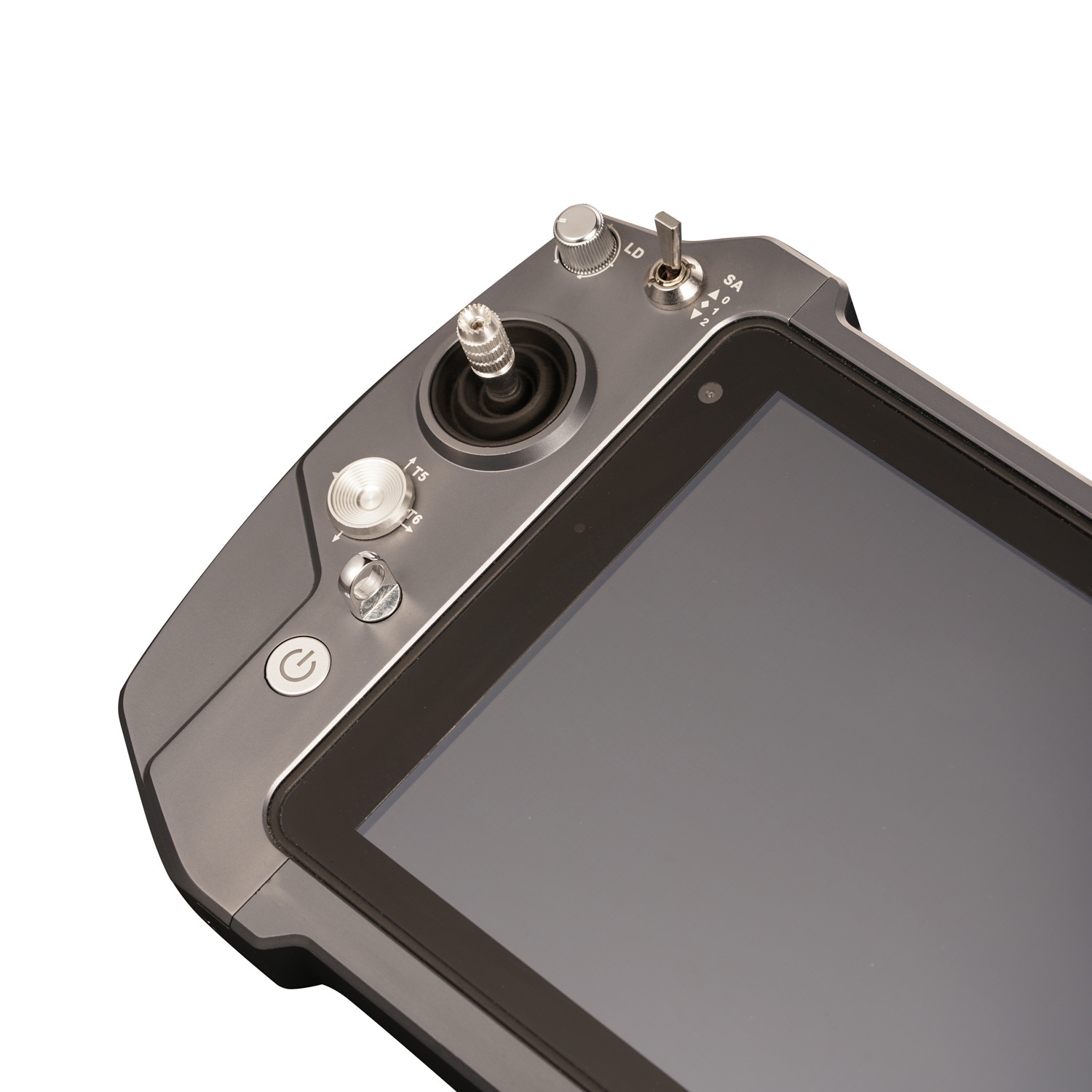

    • 2 main joysticks and 2 auxiliary joysticks
    • Multiple joystick options, left and right handed mode, back center mode, industrial hall effect joystick
    • Dual SBUS output able to control the drone and the payload together
    • All the channels can be self-defined in the RC software
    • Front and rear cameras that can do face verification to unlock the computer to secure aircraft controls.

    350CCD Ground Control System

    350CCD Ground Control System350CCD Ground Control System350CCD Ground Control System350CCD Ground Control System350CCD Ground Control System


    Remote controller T21

    Overall weight: 1000g

    Dimension: 300mm*160mm*40mm

    Operation temperature: -10~+50℃

    IP rating: IP53

    RF power: 0.1-1w(adjustable)

    Remote control latency: 30ms

    Antenna: 2dB rod antenna

    Package dimension: 370mm*285mm*105mm

    Channel: 16 programmable Channels

    Main Joystick: 2 ((left and right handed mode/ back to center mode/Hall effect)

    Auxiliary joystick: 2

    3-position switch: 4

    Knob: 2

    Key button: 2

    Interface


    SBUS port: Dual SBUS ports with HID input

    External interface: USB2.0

    Charging port: TYPC 5V


    Computer

    Display Screen: 8inch/1280*720

    Brightness: 350CCD

    CPU: Intel Cherry Trail Z8350

    Memory : 4G

    Hard disk: 64G

    Network: WIFI/Bluetooth/4G

    Operating system: Win10(standard)

    Touch panel: 10 point capacitive touch screen

    Battery: 3.7V/7500mAh

    Endurance: 4h

    Loudspeaker: Built-in


    Airborne unit

    R20 telemetry&RC link

    Frequency: 900MHz(902-920MHz) Mircohard P900 module

    Transmission range: 5km-50km(Depend on the environment)

    Power voltage: 7.4v-12v

    Operation current: 100mA@12v power supply

    Operation temperature: -10~+50℃

    RF power: 0.1w-1w

    Antenna: 2dB rod antenna

    Weight: 43g(exclude antennas)

    Dimension: 53mm*40mm*14mm

    Interface: Serial port*1

    SBUS port: 2

    Power input interface: XT30
