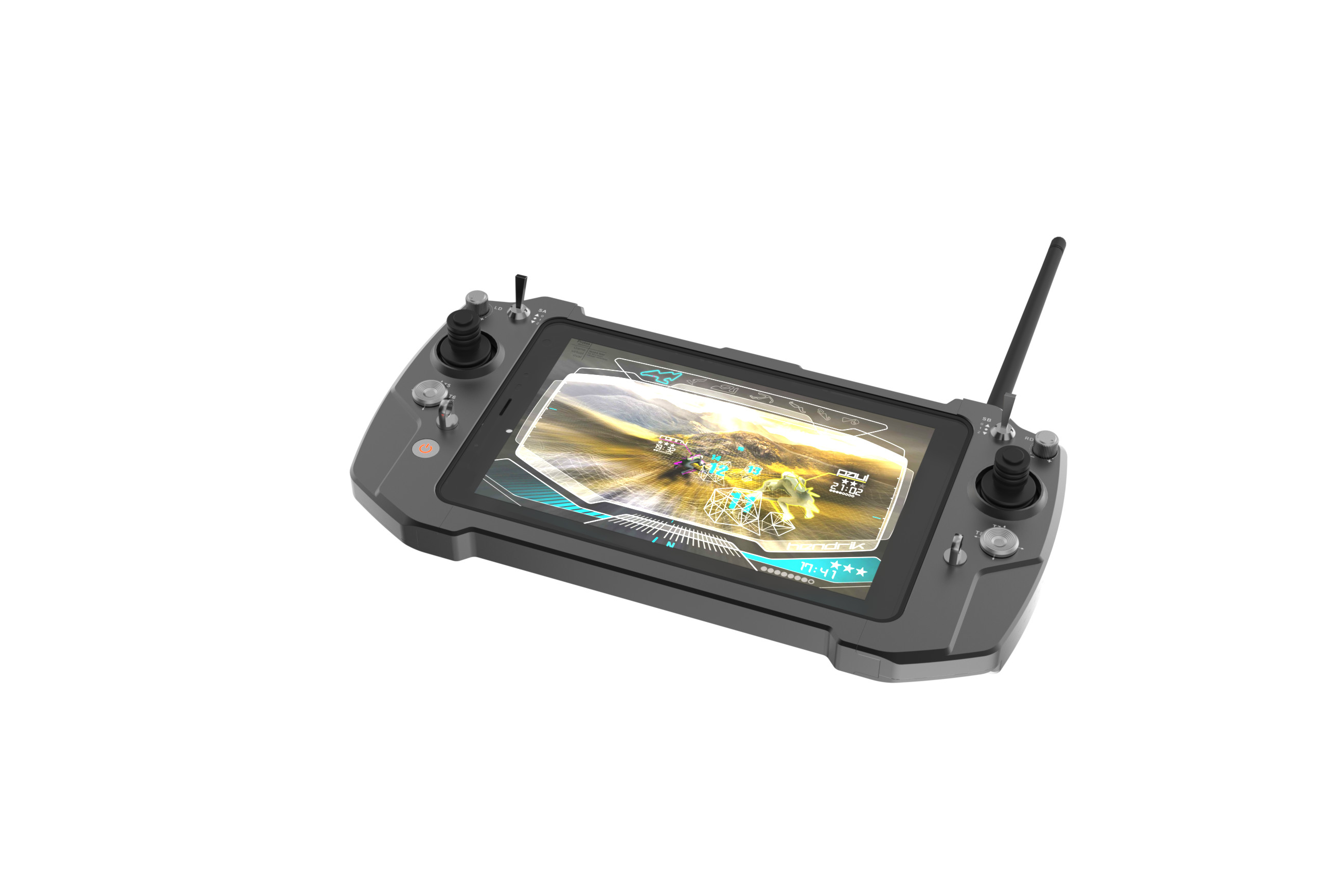

T21 Budget-Friendly Portable Ground Control Station With Long Range Telemetry Transmission And Remote Control

With an independent dual SBUS design, T21 is a portable industrial-grade ground control station. T21 can perform tasks such as mission planning, attitude control, payload control, navigation and position control, and remote monitoring.

The safety and stability of the flight is ensured by industrial-grade computers and military-grade data links. It is easy to operate and transport.

Product Features

• Industrial grade computer with GPS

• 16 physical channels

• IP rating industrial computer

• Dual auxiliary joysticks

• Dual SBUS output

• Each channel programmable

• Remote control latency: 30ms

• 8inch 10-finger capacitive touch screen

• Aviation grade aluminum alloy material, lightweight only 1kg

•

Remote controller T21

Overall weight: 1000g

Dimension: 300mm*160mm*40mm

Operation temperature: -10~+50℃

IP rating: IP53

RF power: 0.1-1w(adjustable)

Remote control latency: 30ms

Antenna: 2dB rod antenna

Package dimension: 370mm*285mm*105mm

Channel: 16 programmable Channels

Main Joystick: 2 ((left and right-handed mode/ back to center mode/Hall effect)

Auxiliary joystick: 2

3-position switch: 4

Knob: 2

Key button: 2

Interface

SBUS port: Dual SBUS ports with HID input

External interface: USB2.0

Charging port: TYPC 5V

Computer

Display Screen: 8inch/1280*720

Brightness: 350CCD

CPU: Intel Cherry Trail Z8350

Memory: 4G

Hard disk: 64G

Network: WIFI/Bluetooth/4G

Operating system: Win10(standard)

Touch panel: 10 points capacitive touch screen

Battery: 3.7V/7500mAh

Endurance: 4h

Loudspeaker: Built-in

Airborne unit

R20 telemetry&RC link

Frequency: 900MHz(902-920MHz) Mircohard P900 module

Transmission range: 5km-50km(Depend on the environment)

Power voltage: 7.4v-12v

Operation current: 100mA@12v power supply

Operation temperature: -10~+50℃

RF power: 0.1w-1w

Antenna: 2dB rod antenna

Weight: 43g(exclude antennas)

Dimension: 53mm*40mm*14mm

Interface: Serial port*1

SBUS port: 2

Power input interface: XT30
