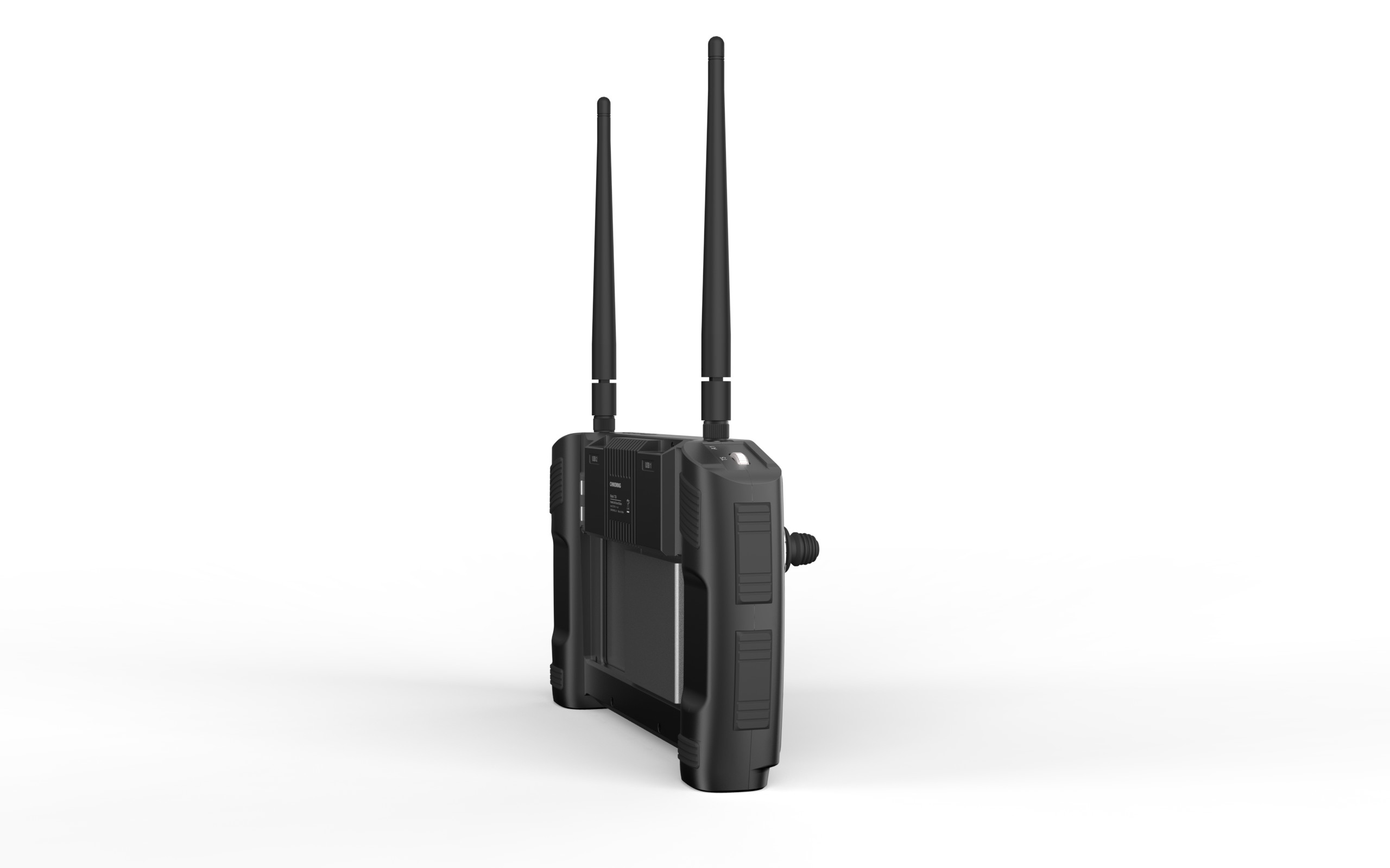

T26 Highly Integrated Drone Ground Control Station Compatible With Any Fixed-Wing Or Multirotor UAV

Ground control station(GCS) T26 runs on Panasonic FZ-M1, a military-grade professional tablet that meets MIL-STD-810G, IP65 dust- and water-resistant design.

Featuring an all-in-one video, telemetry, and RC link, the T26 includes 2 joysticks, 2 pull wheels, and 10 buttons. The user can assign 16 physical channels to joysticks, switches, and buttons.

The integrated large-capacity battery makes it possible to continuously run it for nine hours. It greatly facilitates the user on the field.

A universal mobile command&control system, it is able to work with most open-source flight controls and any type of remote-controlled vehicle, such as UAVs, UGVs, USVs, and others.

Performance upgrade

• Built on Panasonic FZ-M1, IP65 grading

• Aviation grade aluminum shell, the overall weight only 1.5kg

• Dual SBUS output, able to control the drone and the payload simultaneously

• USB HID function, easier for the user to do the further development

• Windows OS Low latency remote control, 30ms

Perfect remote control experience

• Double hall rocker
• Double round rocker
• Light alloy buttons

Long battery working time

• Battery capacity is 3220mAh+6800mAh
• Remote control about 9hs
• The web browsing about 12hs

Modeling design

• Aviation aluminum alloy shell, rugged and lightweight
• Overall weight is only 1.5 kg
• Around with soft rubber, skid resistance, anti-knock

Parameters

Overall

Overall weight: 1.5kg

Dimension: 30cm*15.8cm*4cm

Operation temperature: -20℃-+60℃

Battery capacity: Built-in 7.4V/3220mAh(RC)& 8.4V/6800mAh (computer)

Endurance: 9hs

IP rating: IP65

Communication system: V21(10km grade)

Antennas: 2-4dB ZYJB antenna

Computer

Computer: Panasonic FZ-M1(Processor: Intel i5 7Y57)

Display screen: 7inch industrial touch screen+800nits sunlight readable+definition 1280*800

Operating system: Win10

CPU: Intel i5 7Y57

Memory: 8G

Storage: 256GB SSD

Network: WIFI/Bluetooth/4G

Remote control system

Physical channel: 16

Joysticks: 2

Pull wheel: 2

buttons: F1-F10

(Each channel programmable, the user can self-define each joystick, switch, button, etc)

Remote control latency: 40ms

Remote control function: Dual SBUS independent output, able to control the vehicle and the payload simultaneously

Human interface: USB HID device

Interfaces

External interface: USB3.0*2

Chinowing has a label as the leading developer of the portable and handheld ground control system in China. Yes, indeed! We love this label.

In an earlier time, the Chinowing team was in the development of UAVs. Each time, the team went out for the flight test and demo, a bulky ground control station was needed to carry, or a 3rd party video&data link with all kinds of wires, remote controller and the computer. Long deployment time, easy failure. If there is a portable all-in-one system that can do command&control, check the real-time video and be free of all kinds of connection wire, that would be too fine.

At that time, there was rarely any handheld GCS used, not any developers in our market. Chinowing CTO, Mr Hu Yanbin, with over 8 years experience in control system development and 5 years experience in the unmanned domain, began the adventure in 2015 to develop handheld GCS, all-in-one video&data&RC link with the brand Chinowing and have realized the high integration. Since the foundation, we have set out to develop high-performance products which are easy to use and integrate, with high criteria to meet the professional standards.

Until now, the Chinowing team has developed eight generations of portable GCS to cater to different application scenarios. The domestic origination dual SBUS output with each channel programmable enables remote control of the drone and the payload together, the user can self-define each channel. With the feature of being user-friendly, our devices have been widely used as remote control devices for UAV, UGV, robots, etc in defence, industrial applications.
