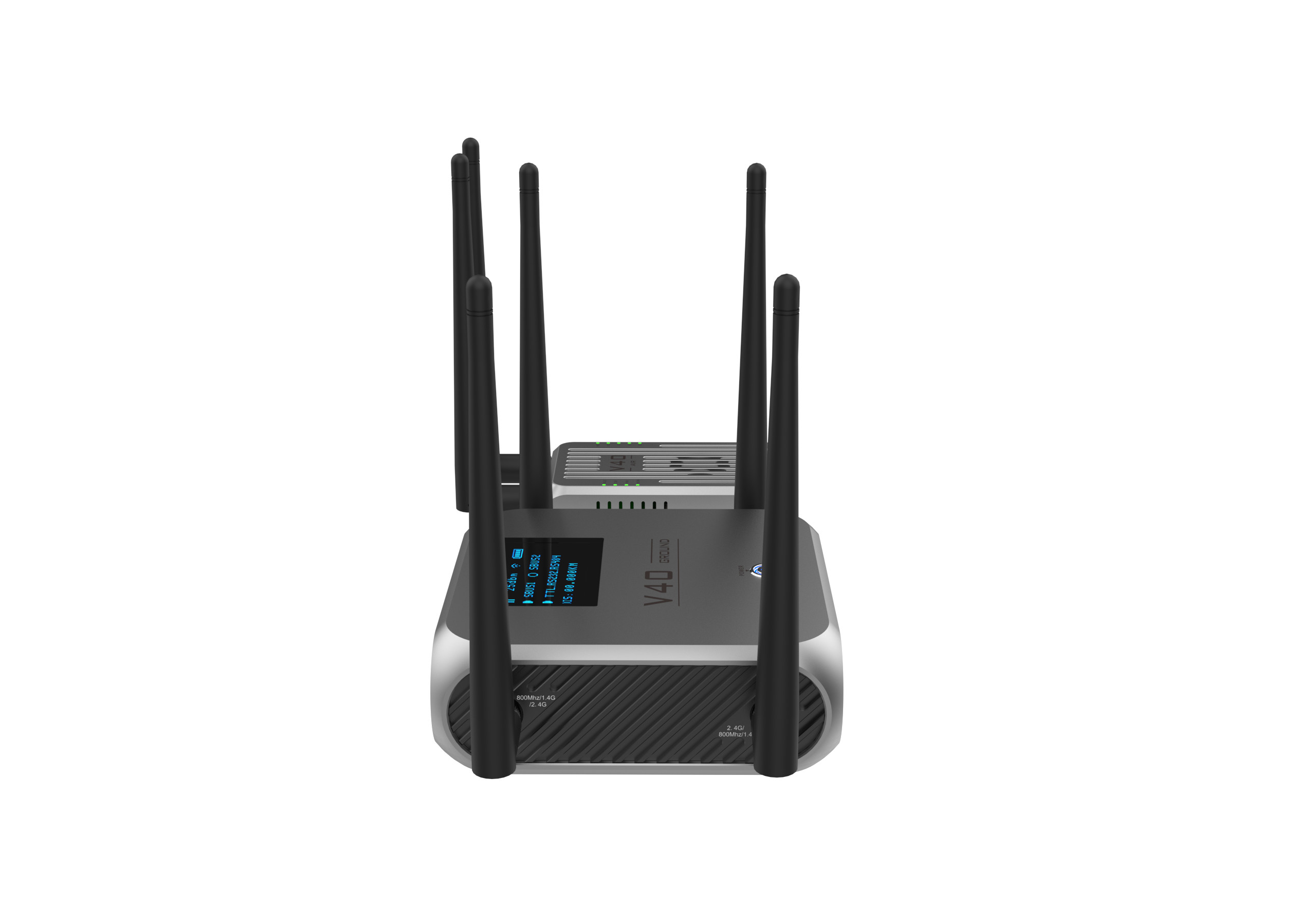

Wireless transmission module V40 has multiple functions. Besides telemetry data and real-time video stream transmission, it has 2*SBUS ports, allowing it to control both the vehicle and the payload.

One model includes RF modules with 800M, 1.4G, and 2.4G frequency bands, and the software allows modifying the frequency. With HDMI and LAN video input interfaces and 3 serial ports(TTL&RS232&RS485), 2 channels of HD video and 3 channels of serial port data can be transmitted simultaneously.

V40 supports both point-to-point and point-to-multipoint communication, which means the nodes in the center can communicate with each other, thereby expanding application scenarios greatly.

An integrated WIFI module is built into the ground unit, which can be used to wirelessly connect to a computer or monitor.

Power consumption and product dimensions are greatly reduced due to high integration, which is especially suitable for complicated applications.

Features

Parameters

Overall

Frequency:

800MHz: 806-826MHz

1.4GHz: 1427.9-1447.9MHz

2.4GHz: 2401.5-2481.5MHz)

Transmission range: 10km grade

Bandwidth: 3M/5M/10M/20M(adjustable)

Video latency : <=300ms

Airborne unit

RF power: 300mW-2W

Power supply port: XT30

Power supply voltage: 12-24v

Operation current: 470mA@12V power supply

Operation temperature: -35℃~+60℃

Antenna: 2-4dB rod antenna

SBUS port : 2*S-BUS port

Serial port: TTL*1 & RS232*1 & RS485*1

Video input: LAN*1, HDMI*1, CVBS*1

Dimension: 117mm(L)*70mm(W)*30mm(H)

Weight: 236g(exclude antennas)

Ground unit

RF power: 300mW-2W(adjustable)

Power supply interface: XT30 12V

Charging port: DC12.6V(Aviation plug/GH1.25)

Built-in battery Capacity: 6800mAh

Endurance: 10h with full capacity

WIFI data rate: 144Mbps-300Mbps

Antenna: 2-4dB rod antenna&8-9dB fiberglass antenna

SBUS port : 2*S-BUS port INTPUT

Serial port: TTL*1 & RS232*1 & RS485*1

Video output: LAN*2

Dimension: 139mm(L)*139mm(W)*48mm(H)

Weight: 1045g(exclude antennas)

Chinowing has a label as the leading developer of the portable and handheld ground control system in China. Yes, indeed! We love this label.

In an earlier time, the Chinowing team was in the development of UAVs. Each time, the team went out for the flight test and demo, a bulky ground control station was needed to carry, or a 3rd party video&data link with all kinds of wires, remote controller and the computer. Long deployment time, easy failure. If there is a portable all-in-one system that can do command&control, check the real-time video and be free of all kinds of connection wire, that would be too fine.

At that time, there was rarely any handheld GCS used, not any developers in our market. Chinowing CTO, Mr Hu Yanbin, with over 8 years experience in control system development and 5 years experience in the unmanned domain, began the adventure in 2015 to develop handheld GCS, all-in-one video&data&RC link with the brand Chinowing and have realized the high integration. Since the foundation, we have set out to develop high-performance products which are easy to use and integrate, with high criteria to meet the professional standards.

Until now, the Chinowing team has developed eight generations of portable GCS to cater to different application scenarios. The domestic origination dual SBUS output with each channel programmable enables remote control of the drone and the payload together, the user can self-define each channel. With the feature of being user-friendly, our devices have been widely used as remote control devices for UAV, UGV, robots, etc in defence, industrial applications.

Being a customer-obsessed business, we will and continue to invest heavily in R&D and be preoccupied with the wants and needs of customers.
