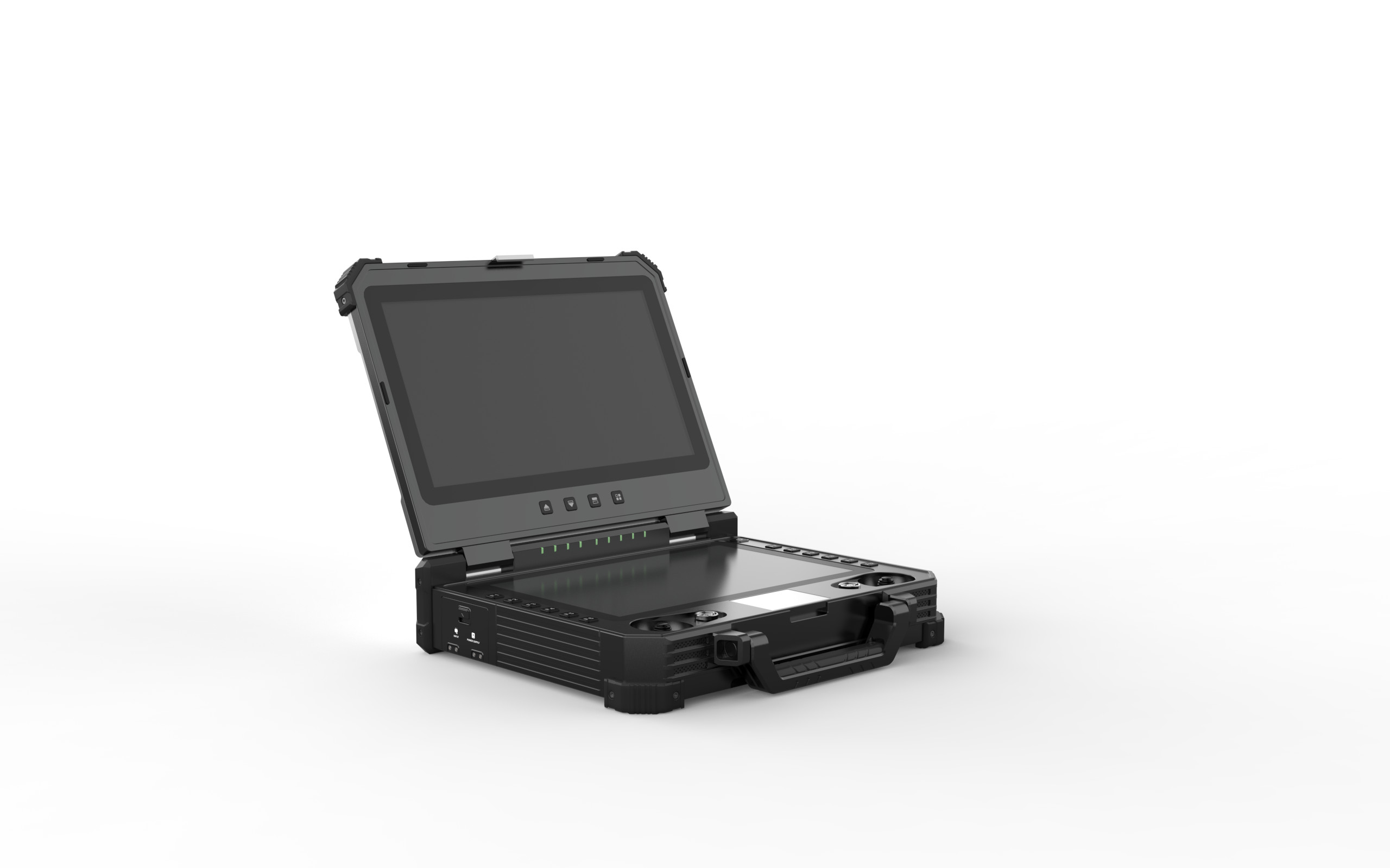

T40 Rugged Drone Ground Control Station Compatible with Most
Open-Sourced Flight Controls
T40 is a dual-screen remote control station that offers a 13.3in
1920*1080 1000CCD screen and a 12.1in 1280*800 1500CCD screen. The
dual displays can be viewed under direct sunlight.
It is equipped with 27 physical channels and a Remote Control
Configuration Interface, which allows users to assign joysticks,
switches, and buttons to specific channels.
The remote control system has 4 joysticks for use, it also supports
traditional RC access. Add HID USB function and programmable
switches that can be set in the software.
Featuring a lightweight aviation-grade aluminum alloy shell and a
3-in-1 communication system, the T40 can be used to command and
control drones and payloads, making it ideal for commercial and
professional drone missions.
Features
Aviation grade aluminum shell, the overall weight is only 5.98kg.
Dual touch screens with high definition and brightness and extended
touchpad.
USB HID function
Dual SBUS output, able to control the drone and the payload
simultaneously
Built-in 16.8V Li-ion battery, also supporting external battery for
power supply
Compatible with 100% data link in the market.
Parameters
Overall
Overall weight: 5.98kg
Dimension: 354mm(L)*280mm(W)*80mm(H)
Operation temperature: -20℃-+60℃
Battery capacity: 16.8V/13600mAh (external battery also supported)
Endurance: 3h@full battery capacity
Communication system:
V30(10km grade)
V21(10km grade)
Supporting the 3rd party communication
Antennas: 4dBi rod antenna/10dBi fiber-glass epoxy antenna(other
antennas also can be connected externally)
Computer
Display screen: 13.3inch 1920*1080 1000CCD(top screen);
12.1inch 1280*800 1500CCD(bottom screen)
Operating system: win10/Linux
CPU: Intel i7 8565U(standard)/Intel 10500U(upgrade for future)
Memory: 8G(standard)
Storage: 256GB SSD(standard)
Network: WIFI, Bluetooth(standard)/4G(optional)
Remote control system
Physical channel: 27
Main joystick: 2(industrial joysticks with hall sensors)
Auxiliary rocker: 4
Key buttons: 12
Simulate keystrokes: 7
Remote control latency: 30ms
Remote control function: Dual SBUS independent output, able to
control the vehicle and the payload simultaneously
Human interface: USB HID device
Interfaces
Serial port: RS232*3, SBUS in/out
External interface: USB3.0, LAN, HDMI in, VGA out, Hi-fi
Charging port: DC16.8V
Airborne unit
V30 HDMI(10km grade video&data&RC link)
Frequency: 800MHz/1.4GHz/2.4GHz (3 frequency modules in one, the
frequency can be changed in the software)
Transmission range: 10km@LOS condition
Bandwidth: 10/20MHz
Data rates: 2-12Mbps
Power voltage: 7.4-12v
RF power: 0.1w-1w(adjustable)
Operation current: 260mA@12v power input
Video definition supported: 1080P60 Max
Weight: 120g(exclude antennas)
Dimension: 91mm*57mm*20mm
Interface
Video input interface: HDMI&CVBS
UART port: 1
SBUS port: 2
Power supply interface: XT30
V21 LAN(10km grade video&data&RC link)
Frequency: 800MHz/1.4GHz/2.4GHz (3 frequency modules in one, the
frequency can be changed in the software)
Transmission range: 10km@LOS condition
Bandwidth: 1.4M-20MHz(1.4M/3M/5M/10M/20M)
Data rates: 2-12Mbps
Power voltage: 7.4-12v
RF power: 0.1w-1w(adjustable)
Operation current: 260mA@12v power input
Video definition supported: 1080P60 Max
Weight: 120g(exclude antennas)
Dimension: 91mm*57mm*20mm
Interface
Video input interface: HDMI&CVBS
UART port: 1
SBUS port: 2
Power supply interface: XT30
