    30km Tactical Video Data Link 0.1-1W With HDMI And LAN Video Input

    Ask Lasest Price
    Brand Name : CHINOWING
    Model Number : V40
    Supply Ability : 1-10000PCS
    Delivery Time : 2-8 works
    Price : USD$1410.30~USD$1723.70
    Payment Terms : T/T
    • Product Details
    • Company Profile

    30km Tactical Video Data Link 0.1-1W With HDMI And LAN Video Input

    V40 Video And Telemetry And RC Link All in one (0.1~1W)


    As a multi function wireless transmission module. V40 can transmit telemetry data and real-time video stream, and has 2*SBUS ports, able to control the vehicle and the payload.


    RF modules of 800M, 1.4G, 2.4G frequency bands are integrated into one model, the frequency can be modified in the software. With HDMI and LAN video input interfaces and 3 serial ports(TTL&RS232&RS485), 2 channels of HD video and 3 channels of serial port data can be transmitted simultaneously.


    As for the communication mode, V40 supports point to point, point to multi-point communication, the center node can communicate with any node, which greatly expands the application scenarios.


    Ground unit has built-in WIFI module, which can be wirelessly connected the the computer or monitor.


    High integration greatly reduces the power consumption and the size of the product, which is especially suitable for the complicated application.


    Features

    • Multi-functions in one device, video&telemetry&R link in one
    • Various interfaces: HDMI&LAN ports, 2*SBUS ports, 3*serial ports; all can be working simultaneously
    • 3 frequency modules in one
    • Support point to point, point to multipoint communication
    • Ground unit with display screen to view the working status
    • Ground unit with built-in WIFI module, able to connect to the phone, pad or computer wirelessly

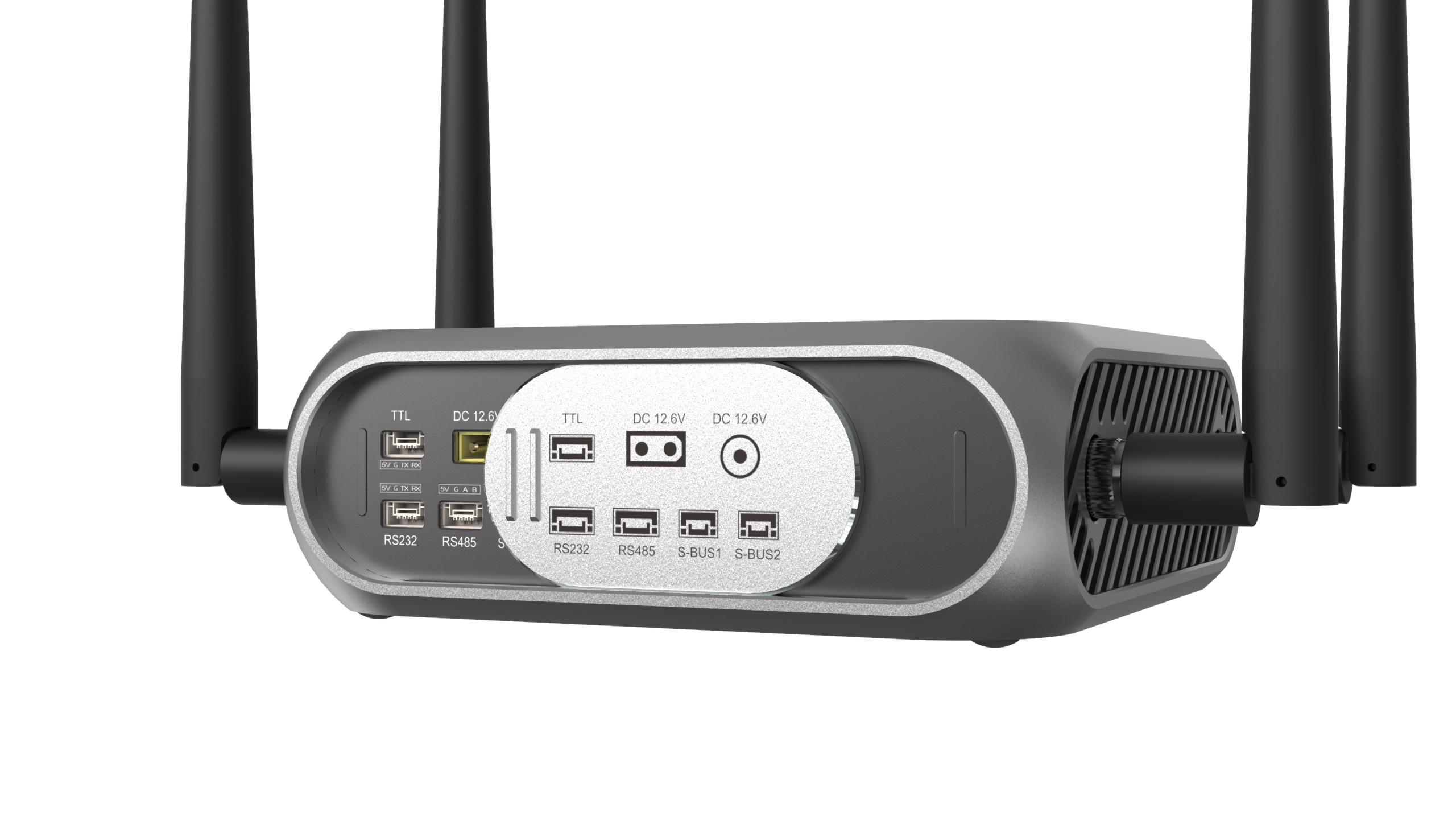

    30km Tactical Video Data Link 0.1-1W With HDMI And LAN Video Input30km Tactical Video Data Link 0.1-1W With HDMI And LAN Video Input30km Tactical Video Data Link 0.1-1W With HDMI And LAN Video Input30km Tactical Video Data Link 0.1-1W With HDMI And LAN Video Input


    Parameters

    The ground sideThe air side
    frequency800MHZ:806-826MHZ 1.4GHZ:1427.9-1447.9MHZ 2.4GHZ:2401.5-2481.5MHZ
    frequency800MHZ:806-826MHZ 1.4GHZ:1427.9-1447.9MHZ 2.4GHZ:2401.5-2481.5MHZ
    power300mW-2W(adjustable)power300mW-2W(adjustable)
    transmission range10km grade/30km gradetransmission range10km grade/30km grade
    SBUS port2*SBUS portSBUS port2*SBUS port
    Serial portTTL*1 RS232*1 RS485*1Serial portTTL*1 RS232*1 RS485*1
    Tansfer protocolTransparent transmissionVideo outputLAN*1 HDMI*1 CVBS*1 (LAN and HDMI ports can be used together,HDMI and CVBS can not be used togetehr)
    wifiwifi*1Bandwidth3M 5M 10M 20M
    WiFi data rate144Mbps-300Mbpspower supplyXT30
    Bandwidth3M 5M 10M 20Mpower supply voltageDC12-24V
    video outputLAN*2interface typeGH1.25
    video latency≤300MSbattery capacity6800mAh
    power supplyXT30 12Vworking current470mA(DC12V)
    charging interfaceDC12.6VAntenna2-4dB rod Antenna
    interface typeAviation plug/GH1.25Dimension117mm*70mm*30mm
    battery capacity6800mAhweight236g(exclude Antennas)
    working current600mA(DC12V)
    endurance10h with full capcaity
    Antenna2-4dB rod Antenna
    Dimension139mm*139mm*48mm
    weight1045g(exclude Antennas)
