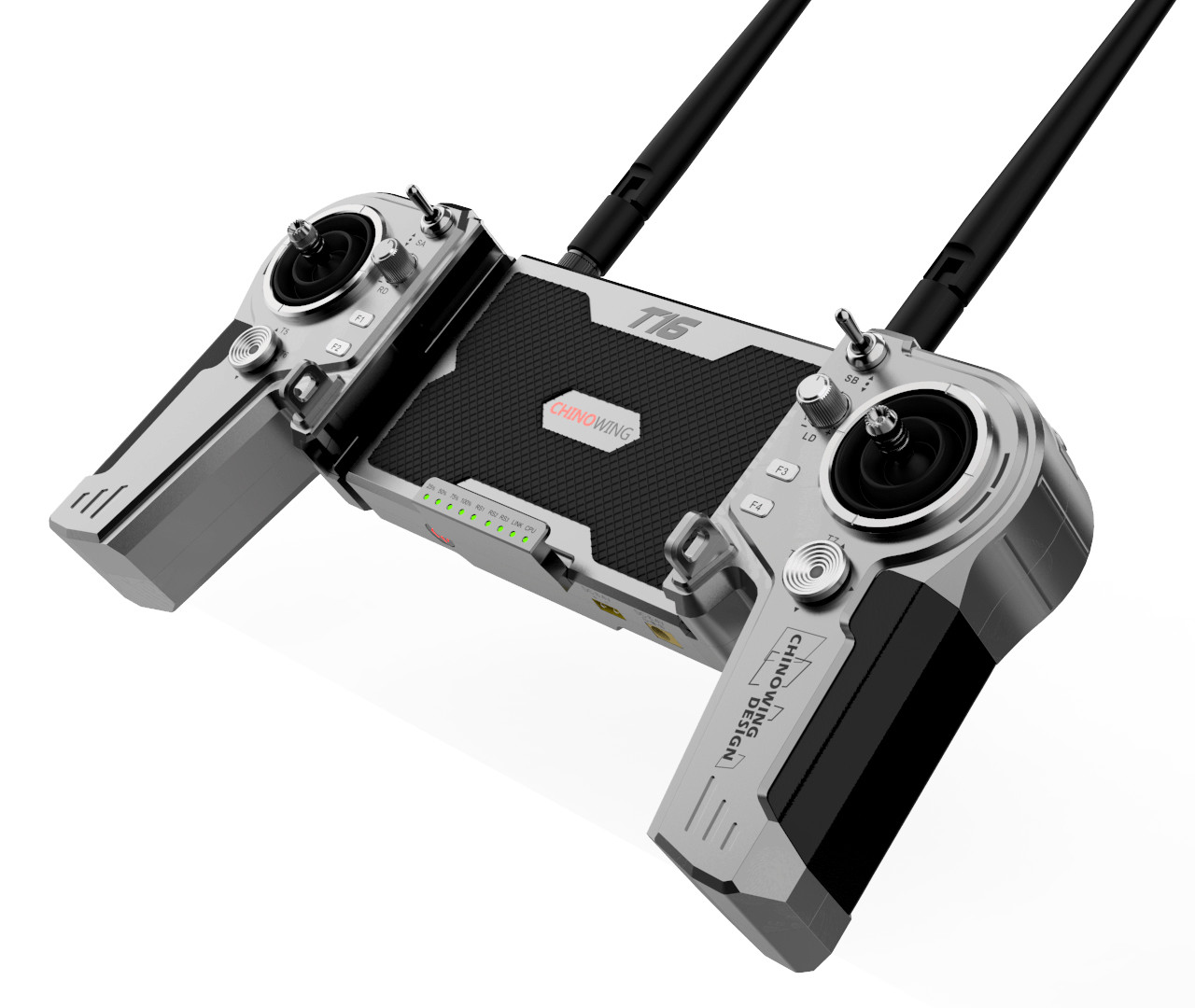

T16 gcs flight controllers

T16 is a compact portable GCS that enables safe and easy operation of the drone and its payload, especially suitable for individual operation. With the extensible design, it supports 5-10.1inch tablet or phone.

Supporting Windows and Android systems, T16 can control the aircraft, the payload, display real-time flight status and remote control status, which supports mainstream tablets and mobile phones. Easy operation and transportation.

Product Features

• Main and auxiliary joysticks design
• Programmable dual SBUS independent output, able to control the payload and the drone together
• The physical channel supports USB HID input to the computer, with up to 9 quick buttons available for quick ground station operation.
• Extensible design, it supports 5-10.1inch tablet or phone.
• Universal platform, suitable for the most flight controllers
• Programmable dual SBus independent output, able to control the payload and the drone
• 800MHz,1.4GHz,2.4GHz can be chosen in the software, communication range 10km+

Remote controller T16

Overall weight: 1060g

Dimension: 290mm*150mm*60mm

Operation temperature: -10~+60℃

IP rating: IP53

RF power: 0.1-0.5w

Remote control latency: 30ms

Ground unit of video link: Built-in

Power supply: 8.4V/6800mAh built-in battery, external battery supported

Endurance: 8h@full battery capacity

Mobile device: Support 5-10.1inch tablet or phone

Operation system: Windows/Android

Remote control range: 10km grade@LOS condition

Channel: 22

Main joystick: 2 (left and right handed mode/back center mode/Hall effect)

Auxiliary joystick: 2

3-position switch: 4

Knob : 2

Key button: 8

Pull wheel: 2

Interface: SBUS port /Dual SBUS ports with HID input

External interface: USB3.0

V21(10Km grade video&data& link)

Frequency: 800MHz(806-826MHz)

1.4GHz(1427.9-1447.9MHz)

2.4GHz(2401.5-2481.5MHz) 3 frequency modules integrated in one, frequency can be modified in the software.

Power voltage: 7.4v-12v XT30

Bandwidth: 3M/5M/10M/20M

Operation current: 300mA@12v power supply

Operation temperature: -10~+50℃

RF power: 0.1w-1w

Antenna: 2-4dB rod antenna

Weight: 110g(exclude antennas)

Dimension: 85mm*55mm*20mm

Video input interface: LAN

Serial port: TTL or RS232

SBUS port: 2pcs

Chinowing has a label as the leading developer of the portable and handheld ground control system in China. Yes, indeed! We love this label.

In an earlier time, the Chinowing team was in the development of UAVs. Each time, the team went out for the flight test and demo, a bulky ground control station was needed to carry, or a 3rd party video&data link with all kinds of wires, remote controller and the computer. Long deployment time, easy failure. If there is a portable all-in-one system that can do command&control, check the real-time video and be free of all kinds of connection wire, that would be too fine.

At that time, there was rarely any handheld GCS used, not any developers in our market. Chinowing CTO, Mr Hu Yanbin, with over 8 years experience in control system development and 5 years experience in the unmanned domain, began the adventure in 2015 to develop handheld GCS, all-in-one video&data&RC link with the brand Chinowing and have realized the high integration. Since the foundation, we have set out to develop high-performance products which are easy to use and integrate, with high criteria to meet the professional standards.

Until now, the Chinowing team has developed eight generations of portable GCS to cater to different application scenarios. The domestic origination dual SBUS output with each channel programmable enables remote control of the drone and the payload together, the user can self-define each channel. With the feature of being user-friendly, our devices have been widely used as remote control devices for UAV, UGV, robots, etc in defence, industrial applications.

Being a customer-obsessed business, we will and continue to invest heavily in R&D and be preoccupied with the wants and needs of customers.
