T21 Highly-Integrated Ground Control Station With Long Range Control And Command For UAV, UGV, USV, ROV, Robotic Systems

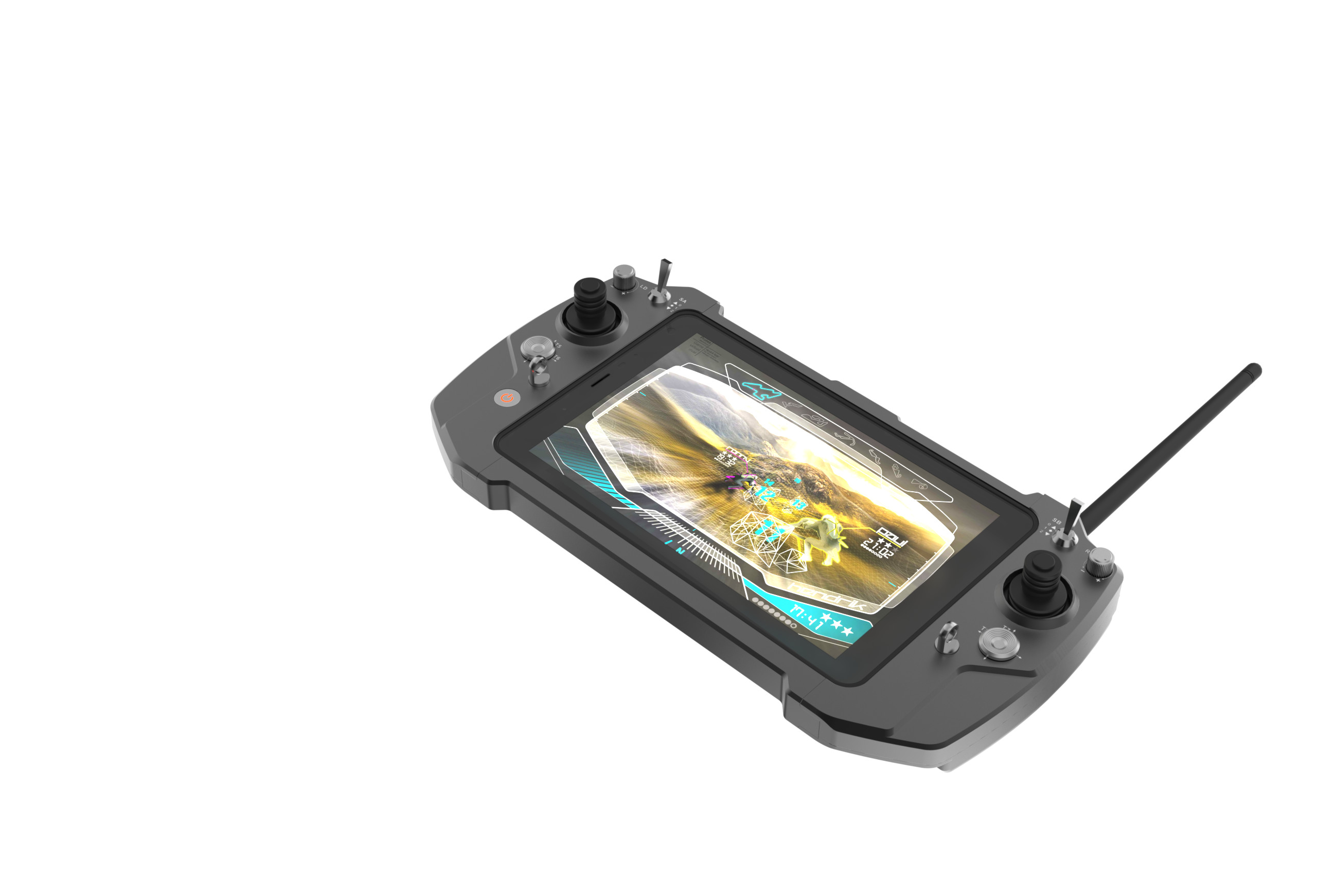

T21, built on the Intel-based PC, is a universal ground control solution that can be configured not only for UAVs but also for ground robots,

ROVs and other remote-controlled devices. The Telemetry&RC link developed on the P900 module is integrated into the T21 Ground Control System.

The overall weight is only 1kg, easy to carry, and easy to use.

It provides various functions, such as mission planning, attitude control, payload control, navigation & positioning, and remote monitoring. It has been widely used in defense, commercial applications,

Product Features

• Industrial grade computer with GPS
• 2 main joysticks and 2 auxiliary joysticks
• Multiple joystick options: left and right-handed mode, back center mode, industrial hall effect joystick
• 10 linear channels meeting various control demand
• Network: WIFI/Bluetooth/4G
• Front and rear cameras that can do face verification to unlock the computer to secure aircraft controls.

Remote controller T21

Overall weight: 1000g

Dimension: 300mm*160mm*40mm

Operation temperature: -10~+50℃

IP rating: IP53

RF power: 0.1-1w(adjustable)

Remote control latency: 30ms

Antenna: 2dB rod antenna

Package dimension: 370mm*285mm*105mm

Channel: 16 programmable Channels

Main Joystick: 2 ((left and right-handed mode/ back to center mode/Hall effect)

Auxiliary joystick: 2

3-position switch: 4

Knob: 2

Key button: 2

Interface

SBUS port: Dual SBUS ports with HID input

External interface: USB2.0

Charging port: TYPC 5V

Computer

Display Screen: 8inch/1280*720

Brightness: 350CCD

CPU: Intel Cherry Trail Z8350

Memory: 4G

Hard disk: 64G

Network: WIFI/Bluetooth/4G

Operating system: Win10(standard)

Touch panel: 10 points capacitive touch screen

Battery: 3.7V/7500mAh

Endurance: 4h

Loudspeaker: Built-in

Airborne unit

R20 telemetry&RC link

Frequency: 900MHz(902-920MHz) Mircohard P900 module

Transmission range: 5km-50km(Depend on the environment)

Power voltage: 7.4v-12v

Operation current: 100mA@12v power supply

Operation temperature: -10~+50℃

RF power: 0.1w-1w

Antenna: 2dB rod antenna

Weight: 43g(exclude antennas)

Dimension: 53mm*40mm*14mm

Interface: Serial port*1

SBUS port: 2

Power input interface: XT30

Chinowing has a label as the leading developer of the portable and handheld ground control system in China. Yes, indeed! We love this label.

In an earlier time, the Chinowing team was in the development of UAVs. Each time, the team went out for the flight test and demo, a bulky ground control station was needed to carry, or a 3rd party video&data link with all kinds of wires, remote controller and the computer. Long deployment time, easy failure. If there is a portable all-in-one system that can do command&control, check the real-time video and be free of all kinds of connection wire, that would be too fine.

At that time, there was rarely any handheld GCS used, not any developers in our market. Chinowing CTO, Mr Hu Yanbin, with over 8 years experience in control system development and 5 years experience in the unmanned domain, began the adventure in 2015 to develop handheld GCS, all-in-one video&data&RC link with the brand Chinowing and have realized the high integration. Since the foundation, we have set out to develop high-performance products which are easy to use and integrate, with high criteria to meet the professional standards.

Until now, the Chinowing team has developed eight generations of portable GCS to cater to different application scenarios. The domestic origination dual SBUS output with each channel programmable enables remote control of the drone and the payload together, the user can self-define each channel. With the feature of being user-friendly, our devices have been widely used as remote control devices for UAV, UGV, robots, etc in defence, industrial applications.

Being a customer-obsessed business, we will and continue to invest heavily in R&D and be preoccupied with the wants and needs of customers.
