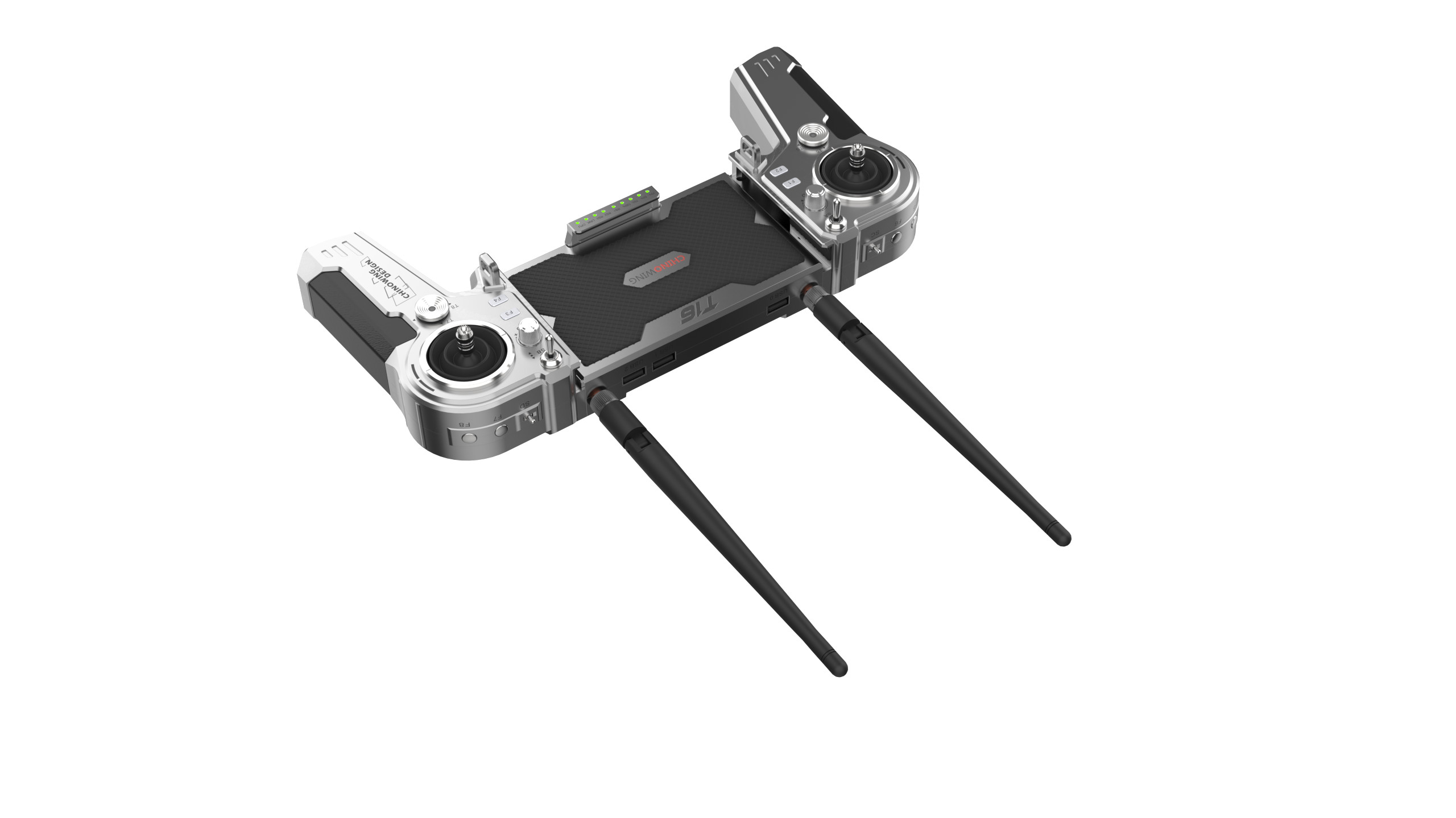

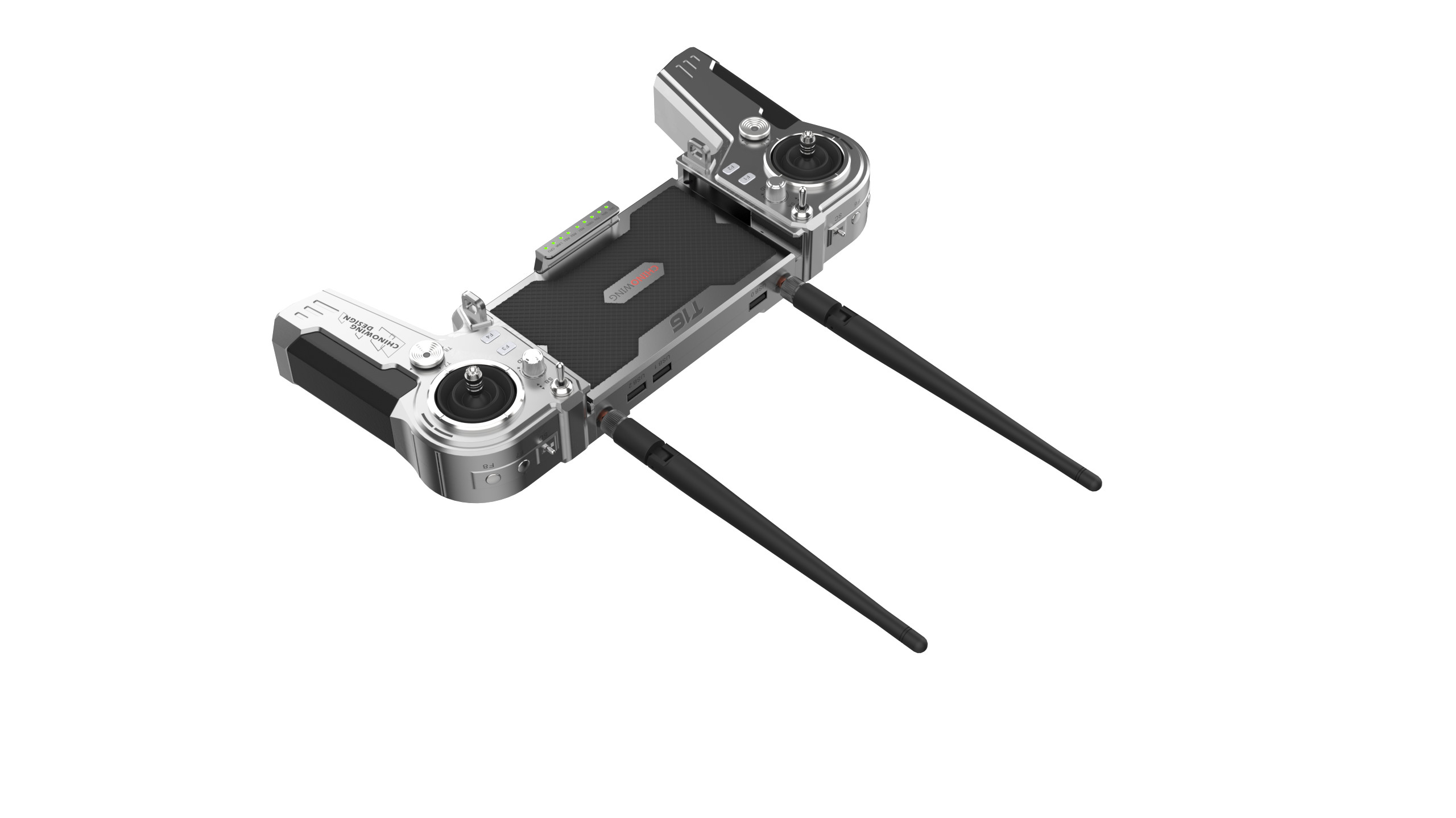

T16 hand held ground control station for UAV (Supporting tablets
and mobile device)
T16 is a compact portable GCS that can control the drone and its
payload, especially suitable for individual operation. With the
extensible design, it supports 5-10.1inch tablet or phone.
With Windows and Android systems, T16 can control the aircraft, the
payload, display real-time flight status and remote control status.
Product Features
- Design with main and secondary joysticks
- Programmable dual SBUS independent output, can control both the
payload and the drone.
- The physical channel supports USB HID input to the computer, with
up to 9 quick buttons available for quick ground station operation.
- 10 linear channels fullfill various control demand.
- Multiple joystick options,left and right handed mode,back center
mode,industrial hall effect joystick.
- Remote control,telemetry data,real-time HD video display, suitable
for individual operation.
- Up to 8 hours battery capacity,meanwhile supporting external
battery powering.
- Universal platform, compatible with most of the flight control
systems in the market
- 3 frequency bands integrated into one(800MHz,1.4GHz,2.4GHz),it can
modified in the software, communication range:10km+
Remote controller T16
Overall weight: 1060g
Dimension: 290mm*150mm*60mm
Operation temperature: -10~+60℃
IP rating: IP53
RF power: 0.1-0.5w
Remote control latency: 30ms
Ground unit of video link: Built-in
Power supply: 8.4V/6800mAh built-in battery, external battery
supported
Endurance: 8h@full battery capacity
Mobile device: Support 5-10.1inch tablet or phone
Operation system: Windows/Android
Remote control range: 10km grade@LOS condition
Channel: 22
Main joystick: 2 (left and right handed mode/back center mode/Hall
effect)
Auxiliary joystick: 2
3-position switch: 4
Knob : 2
Key button: 8
Pull wheel: 2
Interface: SBUS port /Dual SBUS ports with HID input
External interface: USB3.0
V21(10Km grade video&data& link)
Frequency: 800MHz(806-826MHz)
1.4GHz(1427.9-1447.9MHz)
2.4GHz(2401.5-2481.5MHz) 3 frequency modules integrated in one,
frequency can be modified in the software.
Power voltage: 7.4v-12v XT30
Bandwidth: 3M/5M/10M/20M
Operation current: 300mA@12v power supply
Operation temperature: -10~+50℃
RF power: 0.1w-1w
Antenna: 2-4dB rod antenna
Weight: 110g(exclude antennas)
Dimension: 85mm*55mm*20mm
Video input interface: LAN
Serial port: TTL or RS232
SBUS port: 2pcs
